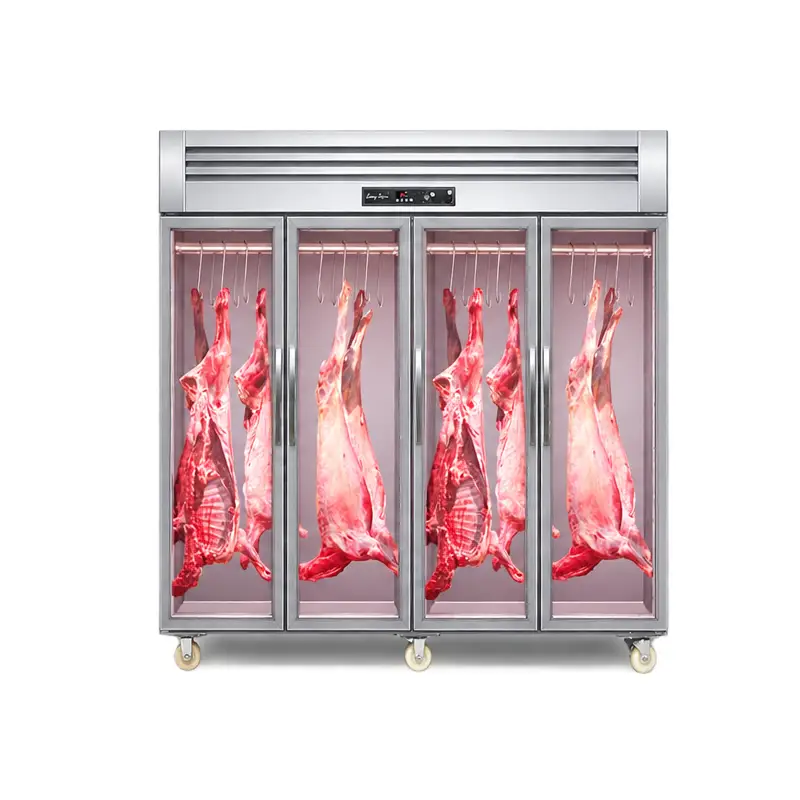

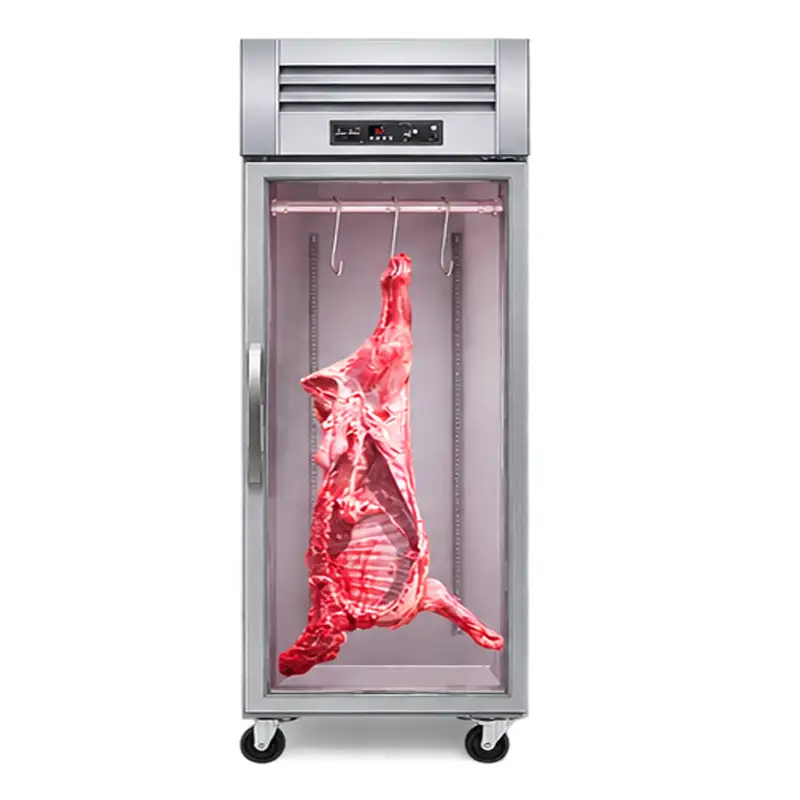

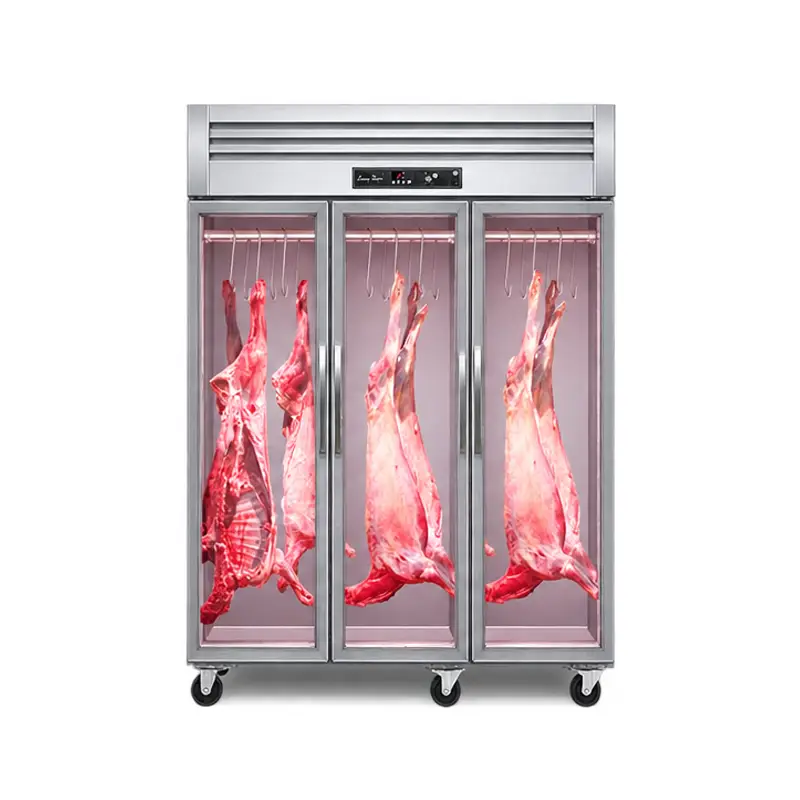

commercial meat hanging chiller with glass doors

commercial meat hanging display chiller for butcher shops & supermarkets

Commercial Meat Hanging Chiller with Glass Doors

Model: SL‑GR-BZ

High‑efficiency Dual‑Compressor System for Superior Cooling Power
Double‑layer hollow glass: internal cold retention & external heat insulation
201 non‑magnetic stainless steel liner & cabinet, oil‑proof, easy‑to‑clean, moisture & corrosion resistant
Optional electric‑wire anti‑fog function for fast defogging and clear glass view
Thickened stainless steel meat hanging bars, max. 400 kg per bar, robust and heavy‑duty
60 mm PU foam layer for outstanding cold insulation performance
Energy‑saving LED lights: white / warm / fresh‑food light optional
LCD smart temperature control, one‑key start‑stop, real‑time temperature display
Heavy‑duty stainless steel hooks, sturdy and durable
Bottom drain outlet to avoid water accumulation for easy cleaning
Heavy‑duty universal casters, 360° rotatable, easy to move

Get a Quick Quote Whatsapp

Product Overview

PURUI Commercial Meat Hanging Display Chiller is designed for butcher shops, supermarkets and meat retail projects that need reliable chilled storage and clear product display. It supports hanging whole carcasses and large meat cuts, with optional shelving for steaks, ribs and packaged meat. Stainless steel construction, glass doors, digital temperature control and heavy-duty casters make it practical for daily commercial use. Available in 1, 2, 3 and 4-door configurations, with customizable sizes, hanging rails, shelving, voltage and refrigeration specifications to meet different project requirements.

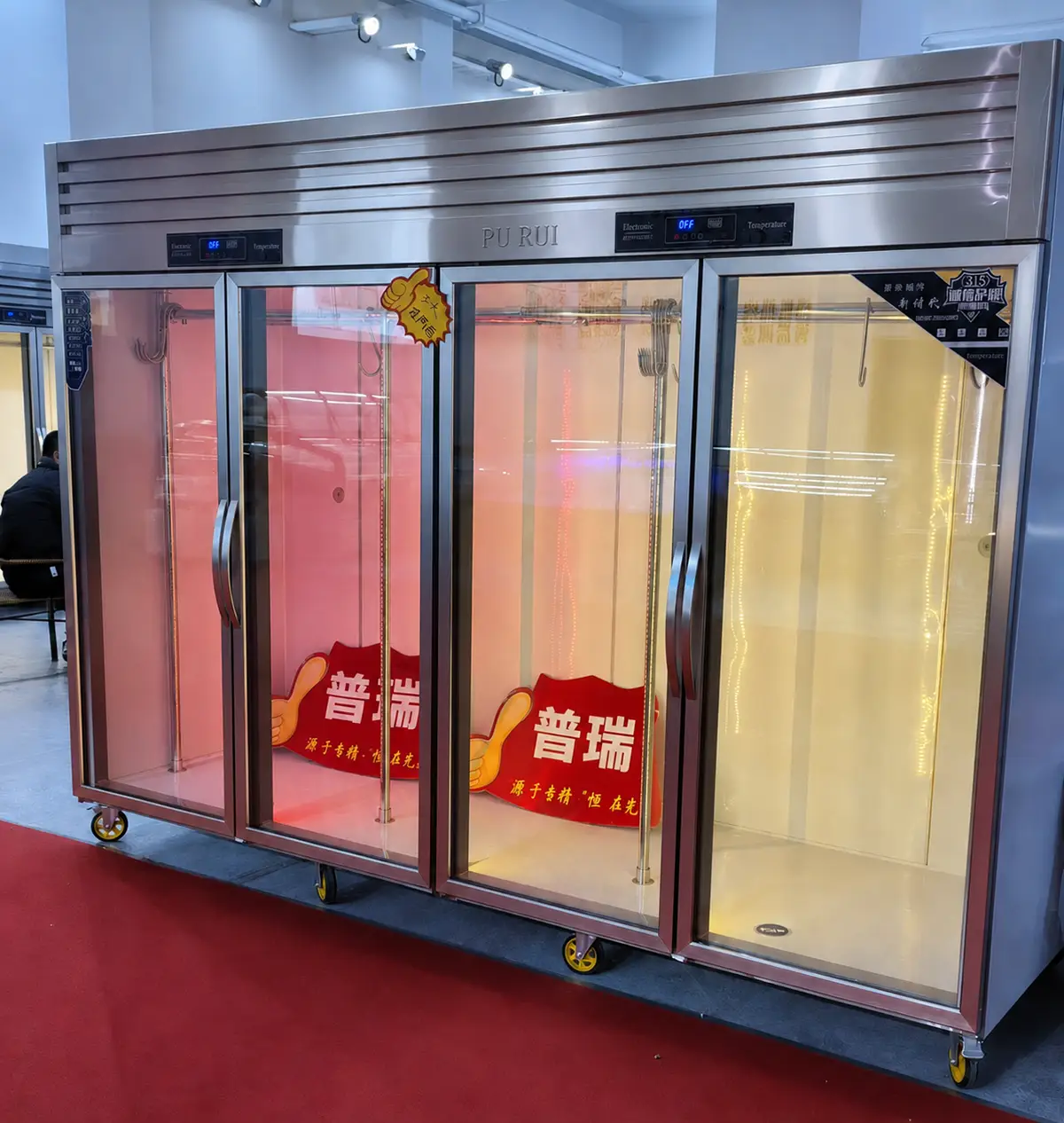

commercial meat hanging chiller with glass doors

Technical Specifications

Model	SL‑GR‑BZ‑D6	SL‑GR‑BZ‑D12	SL‑GR‑BZ‑D18
Temperature	-20‑10(℃)	-20‑10(℃)	-20‑10(℃)
Voltage (V)	220V/50Hz	220V/50Hz	220V/50Hz
Size (L × W × H)	600×700×1950mm	1200×700×1950mm	1800×700×1950mm
Power (W)	290W	492W	600W
Number of compressors	1	1	2
Cooling type	Direct cooling	Direct cooling	Direct cooling
Glass door Double	Safety tempered glass door	Safety tempered glass door	Safety tempered glass door
Bear weight(KG)	100KG	150KG	450KG
Compressor location	Top	Top	Top
Loading (40HQ)(pcs)	66	40	22

Key Features & Benefits

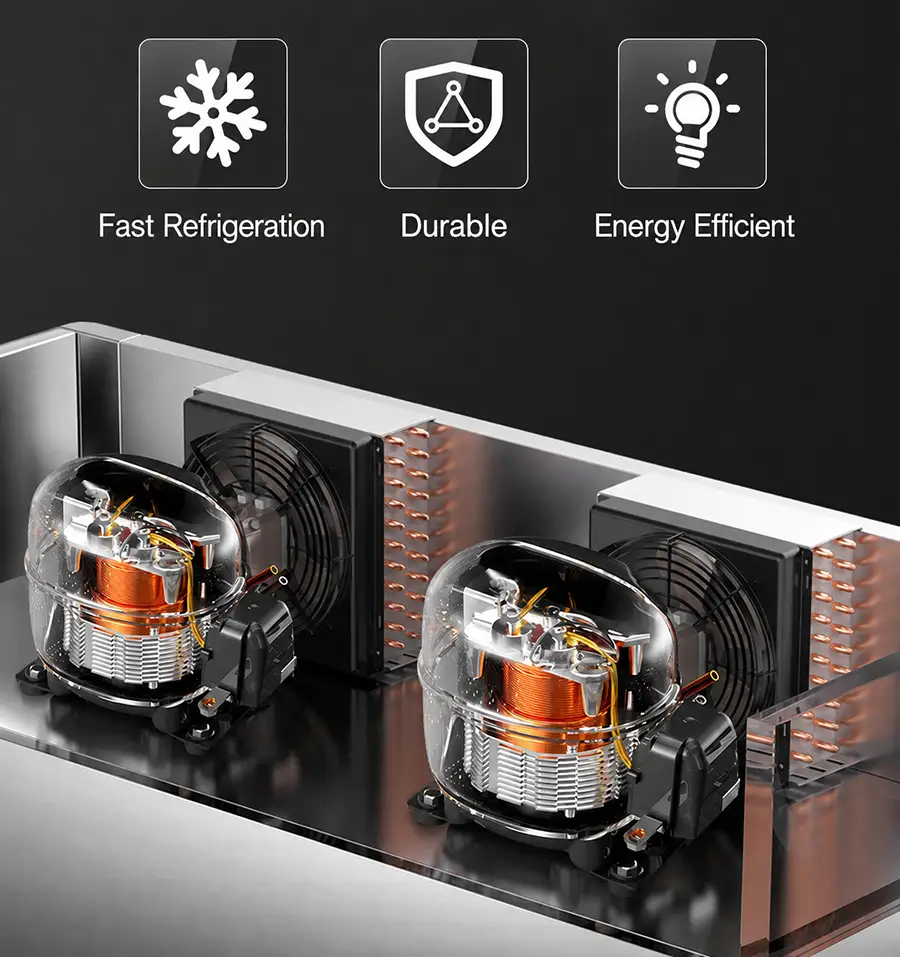

Dual‑compressor for Superior Cooling Power

Equipped with brand‑name compressors and copper‑tube refrigeration system. Delivers boosted cooling capacity, higher cooling efficiency and rapid fresh‑locking performance. Features fast refrigeration, long service life and high energy efficiency.

Pure Copper Tube Wraparound Refrigeration, Fast & Even Cooling

Wraparound pure copper tubes enlarge heat‑exchange area to deliver efficient and uniform cooling. Corrosion‑resistant, rust‑proof and leak‑free, it absorbs heat and moisture efficiently. Extends service life and protects the compressor for stable long‑term operation.

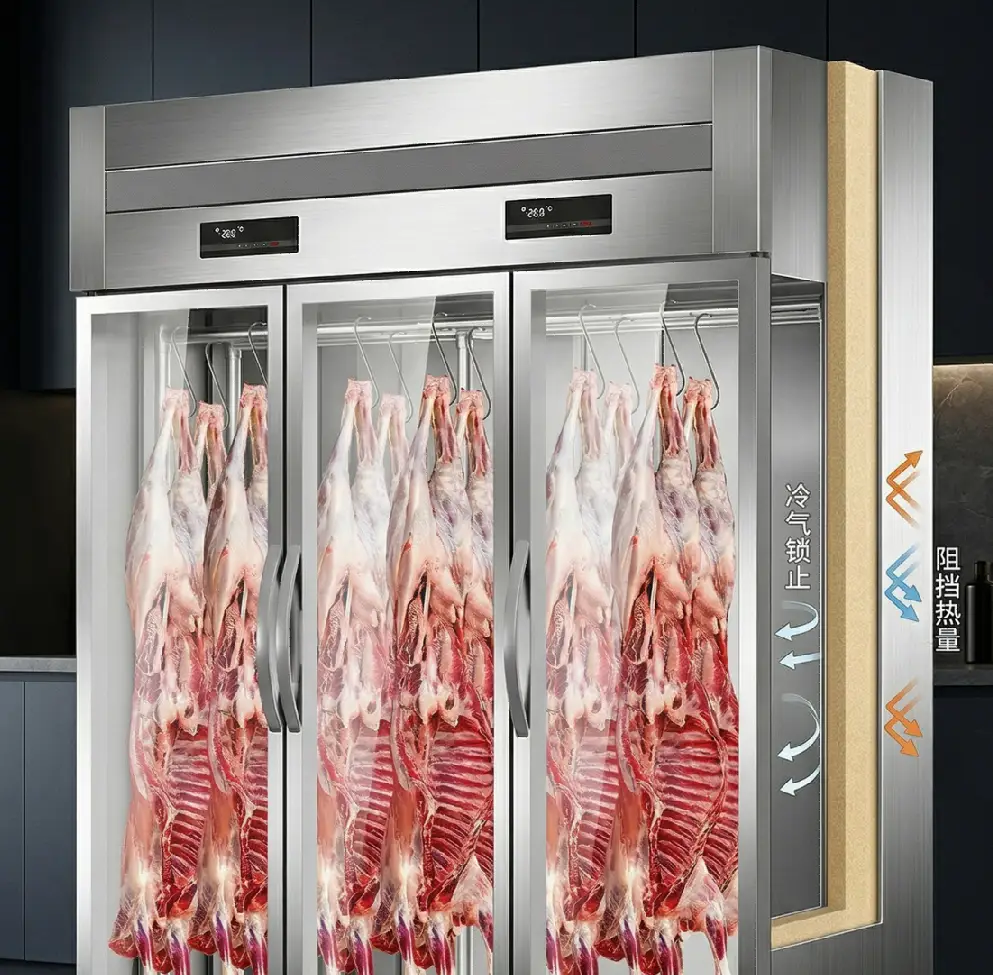

60mm High‑density Polyurethane Foaming Layer

60mm thick polyurethane foam layer acts as hidden energy‑saving core, reduces cold‑air loss by up to 40%. Excellent heat‑insulation keeps stable cabinet temperature, locks in food freshness and cuts energy consumption.

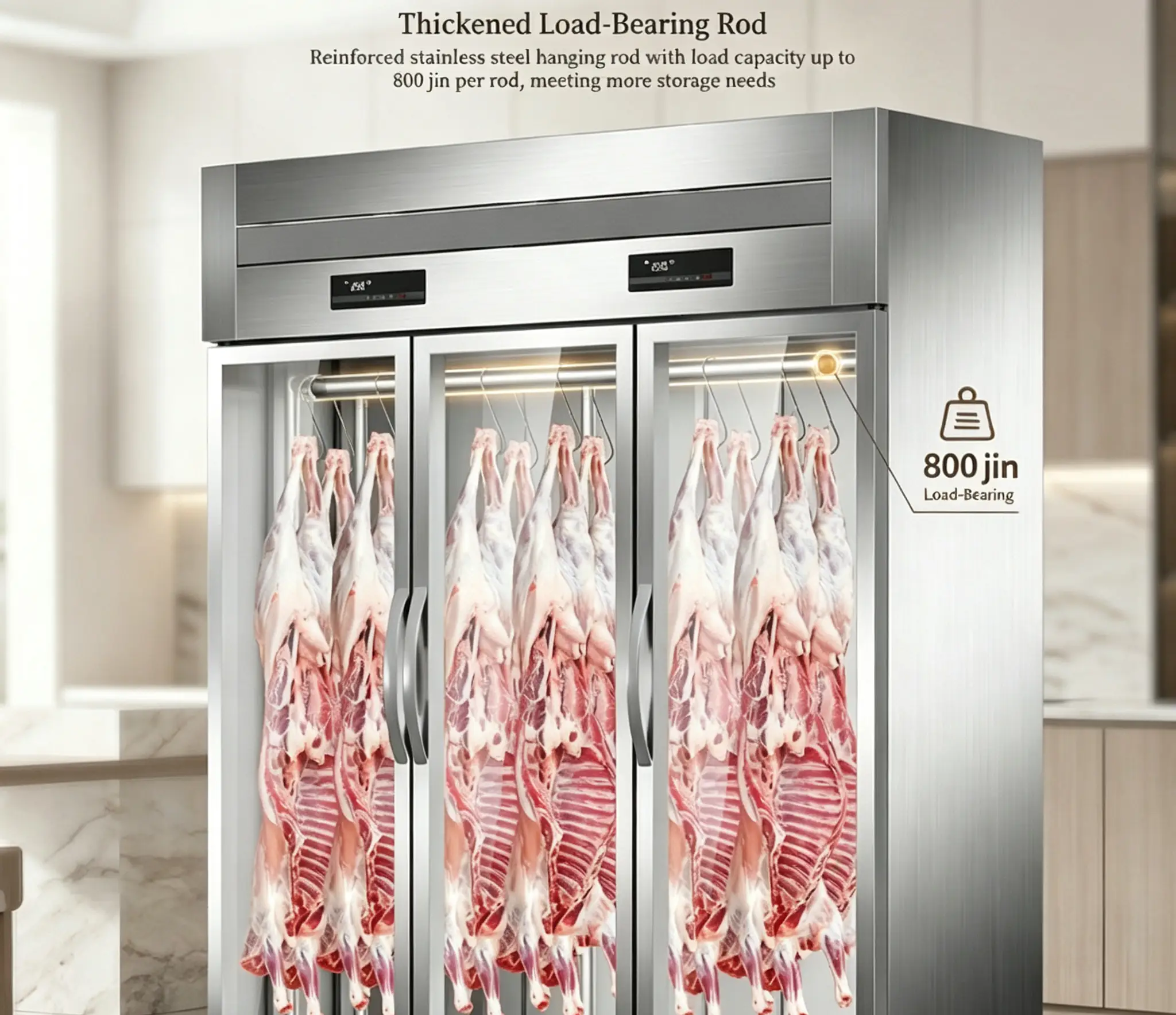

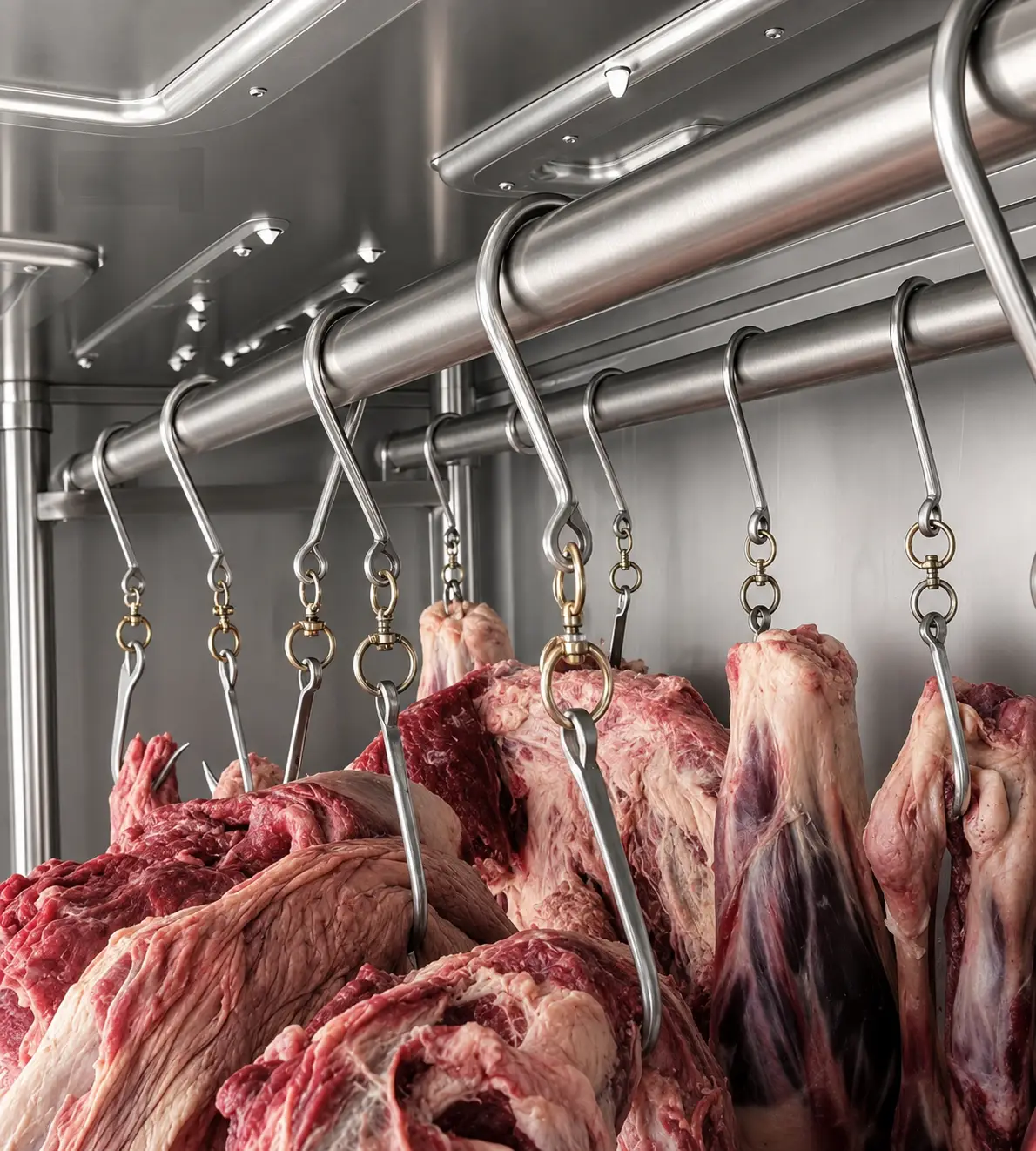

Thickened Load‑Bearing Rod

Reinforced stainless‑steel hanging rod, max load capacity up to 400 kg per rod, satisfying various commercial storage demands.

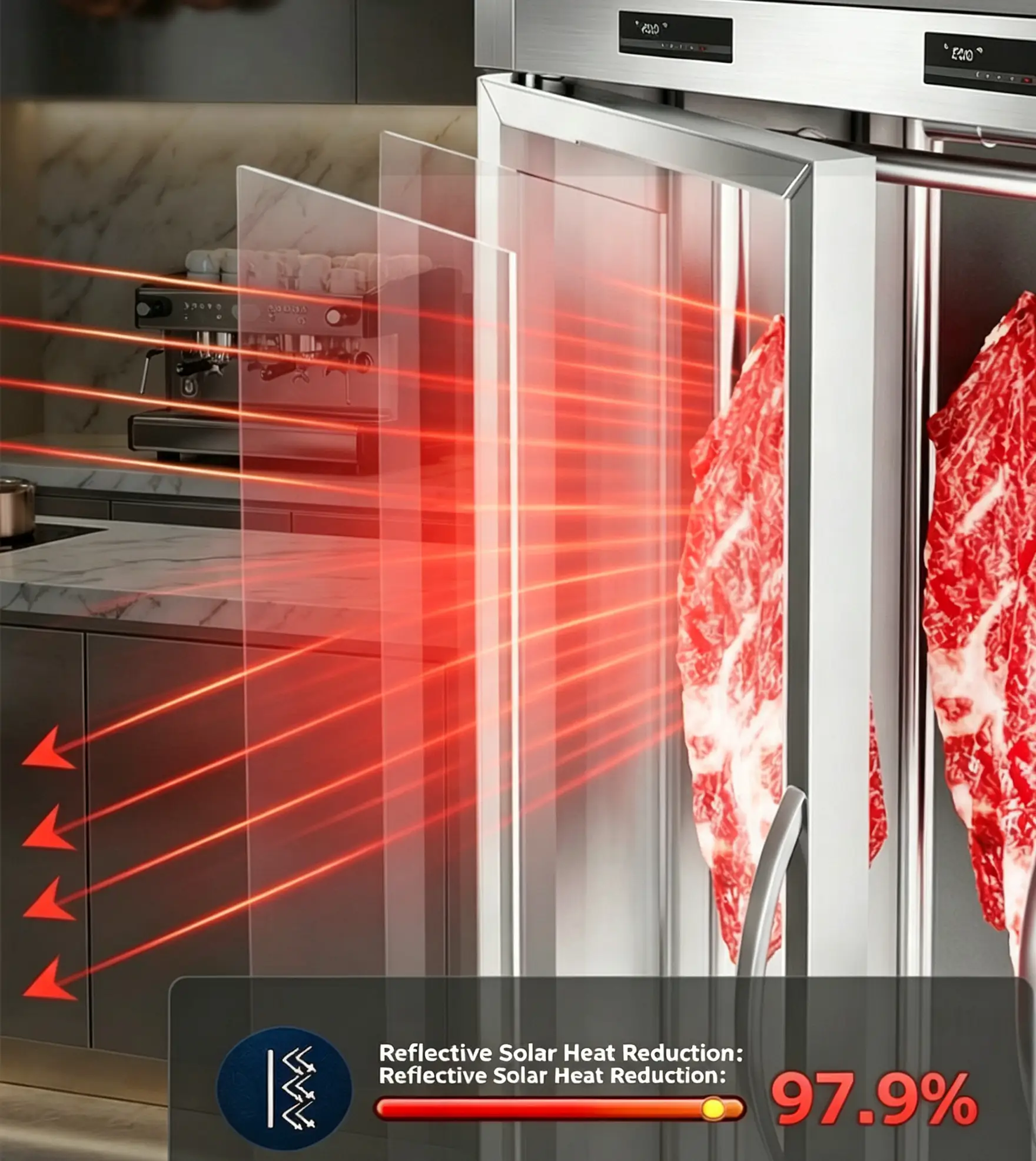

Double‑layer Insulated Glass

Title：Double‑Layer Insulating Glass
Feature：Blocks 97.9% of reflected solar heat, minimizes cold loss

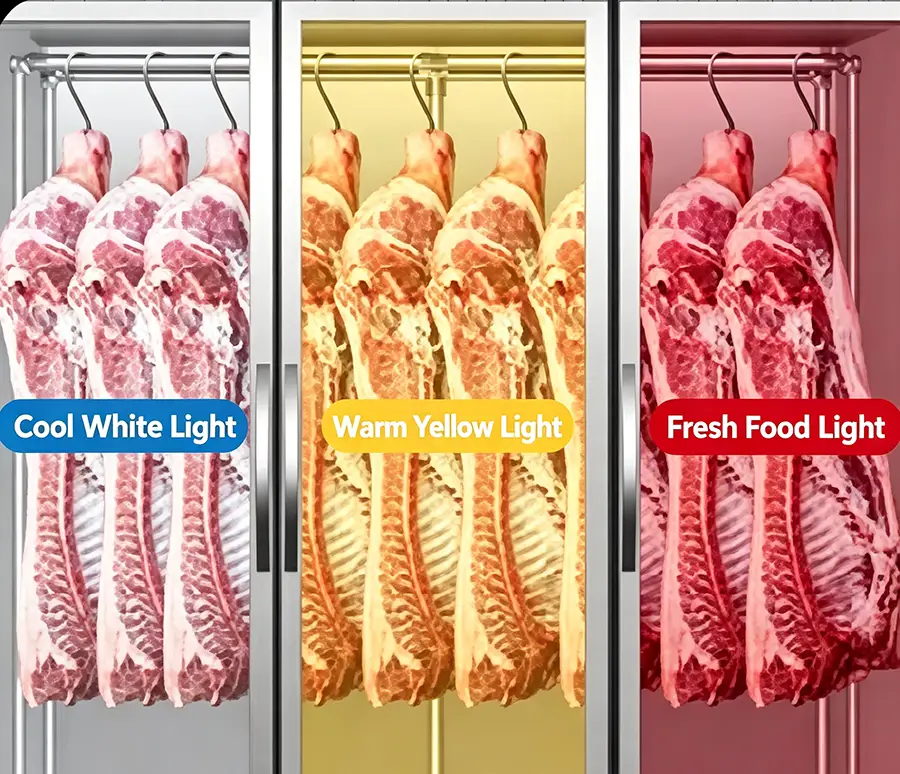

LED Energy‑Saving Lamps

Multiple Light Options: Cool‑White / Warm‑Yellow / Fresh‑Meat Light

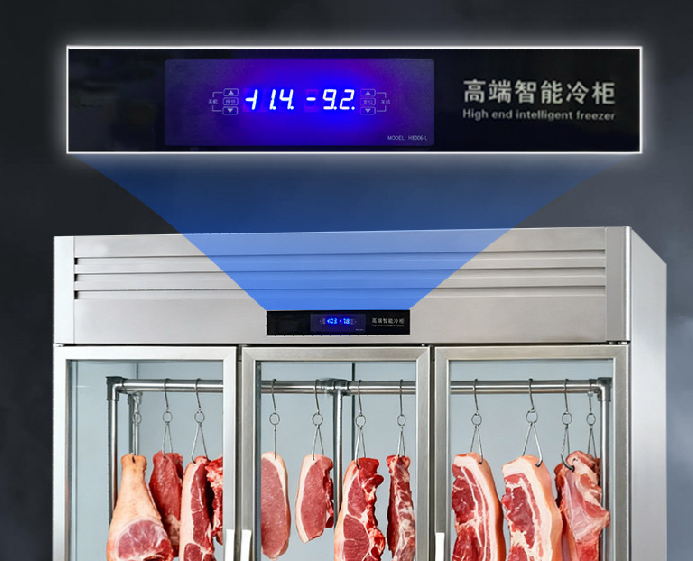

LCD Intelligent Temperature Control

One‑key Auto Start‑Stop
Real‑time Temperature Display

Ergonomic Door Handles

Exquisite Workmanship
Premium & Elegant Appearance

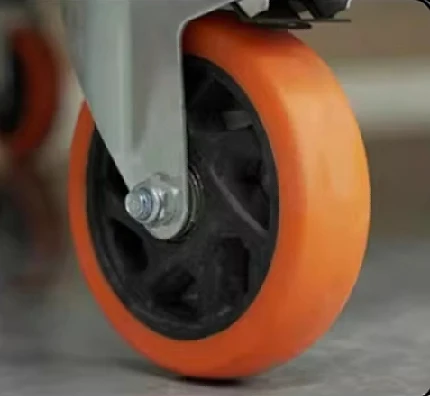

Heavy‑Duty Swivel Casters

Enhanced Load‑Bearing Capacity
360° Free Rotation & Movement

Create your own style

Customize your upright glass‑door refrigerator according to your brand and business requirements. We provide comprehensive OEM/ODM customization services for bulk orders.

commercial glass door display refrigerator

Brand Promotion

Print your logo on the light box or cabinet.

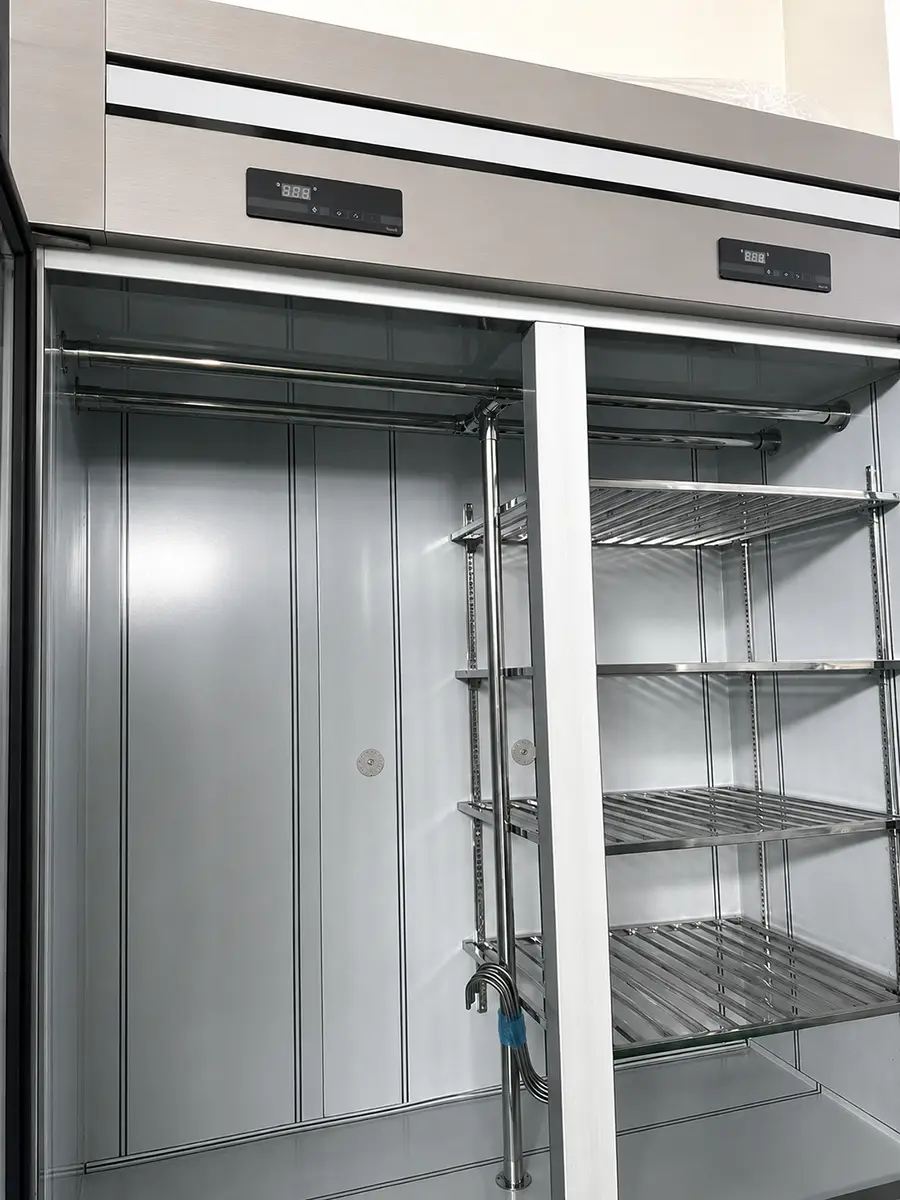

Shelf Configuration

Adjust shelf quantity and spacing.

Color Options

Custom‑colored exteriors to fit your store concept.

Voltage Options

Supports different national standards.

LED Light Options

Install LED strips on door frames or shelf edges to deliver high‑end display performance.

Application Scenarios

Butcher & Fresh Meat Shops

Ideal for butcher shops, meat markets and meat specialty stores. It realizes hanging storage for beef, pork and mutton carcasses. Reliable low‑temperature environment keeps meat fresh, while transparent glass provides clear product display to attract customers.

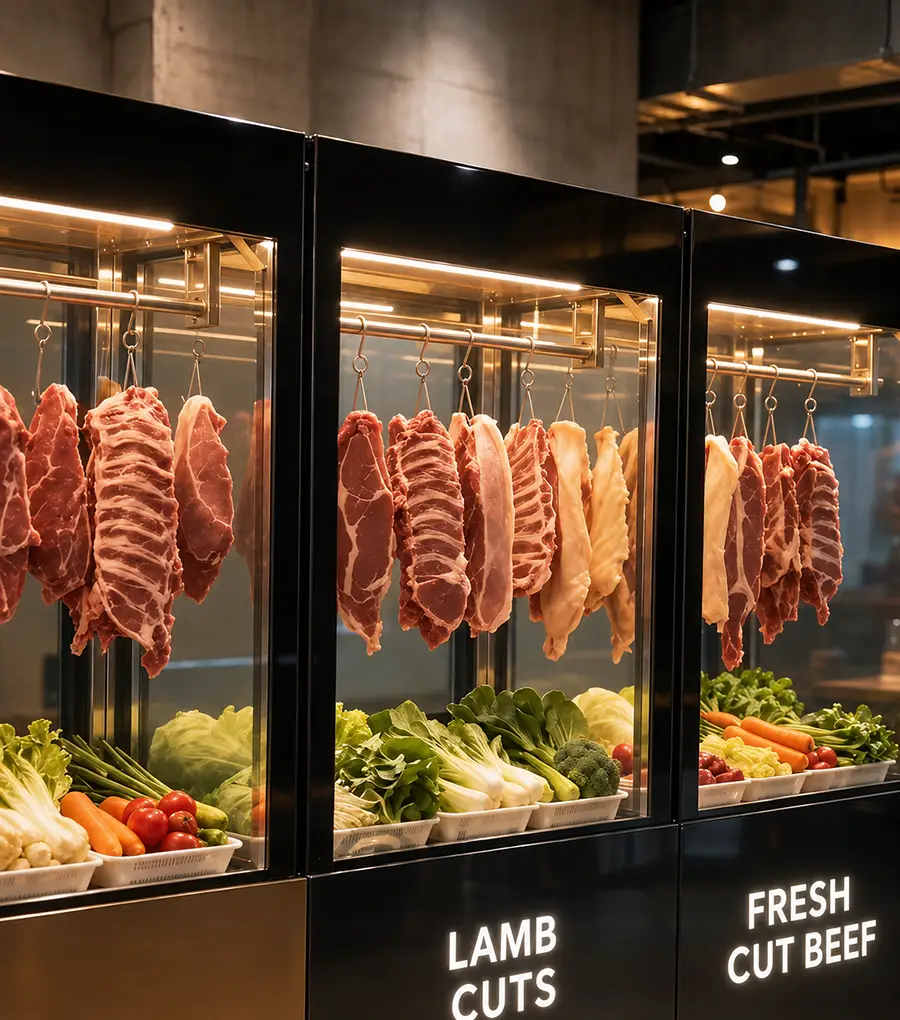

Restaurants & Central Kitchens

Perfect for restaurants, hotels and central kitchens. Designed for hanging storage of beef, pork and mutton raw meat. Stable cooling temperature preserves meat quality. Transparent glass showcases meat ingredients for on‑demand kitchen access.

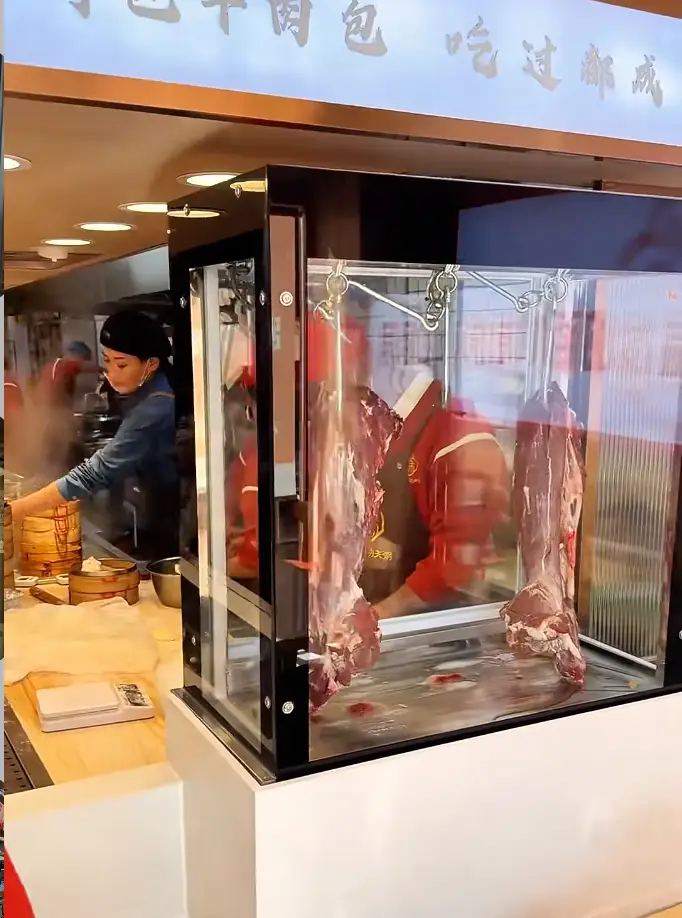

Hot‑pot Restaurants

Ideal for hot‑pot restaurants and barbecue restaurants. Hang fresh beef, mutton and other raw meat for eye‑catching front‑of‑house display. Precise low‑temperature storage keeps meat fresh, improves customer appetite and enhances store‑grade experience.

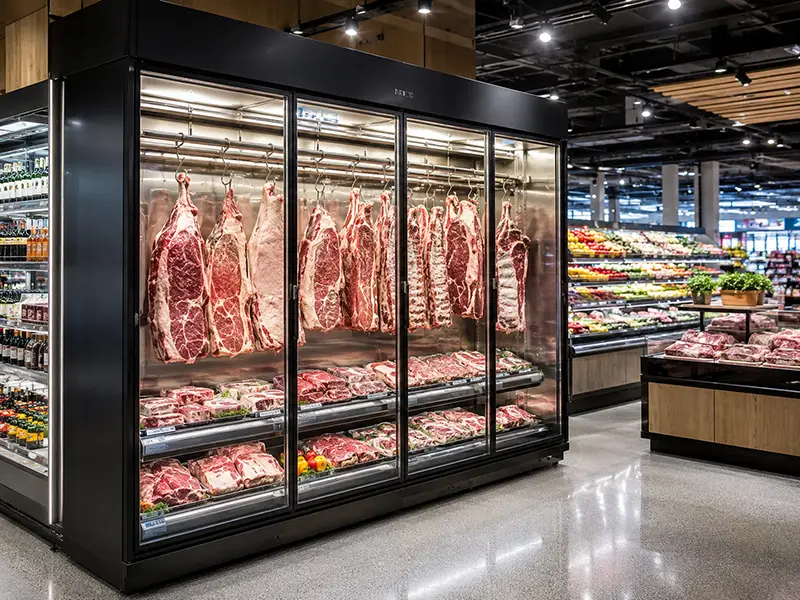

Supermarket Fresh Meat Section

Perfect for supermarket fresh‑meat departments. It hangs whole and half carcasses of beef, pork and mutton for retail display. Stable cooling maintains meat freshness, elegant glass presentation enhances shopping experience and drives sales of premium fresh meat.

FAQ

What door options are available for this meat hanging chiller?
We offer 1-door, 2-door, 3-door and 4-door configurations to suit different storage capacities and store layouts.

Can the hanging rails and shelves be customized?
Yes. The quantity and layout of hanging rails, hooks and shelves can be customized according to the type of meat and your loading requirements.

What temperature range can the chiller provide?
The temperature range can be configured according to the application and refrigeration requirements. Please confirm your required storage temperature before quotation.

Can you customize the size and refrigeration specifications?
Yes. Cabinet dimensions, temperature range, voltage, frequency, refrigerant, door configuration and internal layout can be customized for different markets and projects.

Is the meat hanging chiller tested before shipment?
Yes. Each unit is inspected and function-tested before shipment to check refrigeration performance, temperature control and overall operation.

Can you supply different voltages for different countries?
Yes. Electrical specifications can be matched to the destination market. Please provide the required voltage, frequency and destination country when requesting a quotation.

What is the MOQ?
MOQ depends on the model and customization requirements. Small trial orders may be available for standard configurations.

How is the meat hanging chiller packed for export?
The equipment is packed with export-grade protective materials, with wooden frames or wooden cases available according to transportation requirements.

Do you provide spare parts and technical support?
Yes. We can provide common spare parts, operation manuals, wiring information, installation guidance and remote technical support.
