Commercial Multideck Open Chiller / Supermarket Refrigerated Display Case

Model: SL‑SC-FMJ
  • Intelligent 360° circulating air‑cooling system for long‑lasting freshness
  • Copper tube surround refrigeration for fast and even cooling
  • Independently adjustable multi‑layer thickened reinforced shelves with adjustable height and tilt angle, suitable for various food items
  • 60mm polyurethane foam layer for excellent cold retention
  • Double‑layer thick high‑transparency glass, inner cold‑locking and outer heat‑insulation
  • Hidden night curtain, insect‑proof and easy for storage
  • T8 special LED light for fruits and vegetables to enhance food color and luster
  • Precise digital temperature control, preserve freshness at every 1°C
  • Spray humidification system, specially designed for fruits and vegetables to effectively extend freshness
  • Aluminum alloy anti‑collision profile, exquisite workmanship with premium texture
  • Lockable universal caster wheels, lock for firm fixing to avoid displacement
Get a Quick Quote Whatsapp

Product Overview

PURUI commercial multideck open chiller is designed for supermarkets, convenience stores, grocery shops and fresh food retail applications that require high-visibility refrigerated merchandising. Its open-front structure and multiple adjustable shelves provide easy customer access and flexible display space for fruits, vegetables, dairy products, beverages and packaged foods. Equipped with an air cooling system, LED lighting and adjustable shelving, the unit is designed to maintain stable refrigeration while maximizing display capacity. The wide open display area helps retailers organize products clearly and improve shopping convenience. With a durable commercial cabinet structure, flexible size and appearance options, and configurations suitable for different store layouts, PURUI can provide OEM/ODM customization and project matching support for supermarket equipment distributors, contractors and retail project buyers. Specific dimensions, temperature range, refrigerant, voltage and other technical parameters should be confirmed according to the selected model.

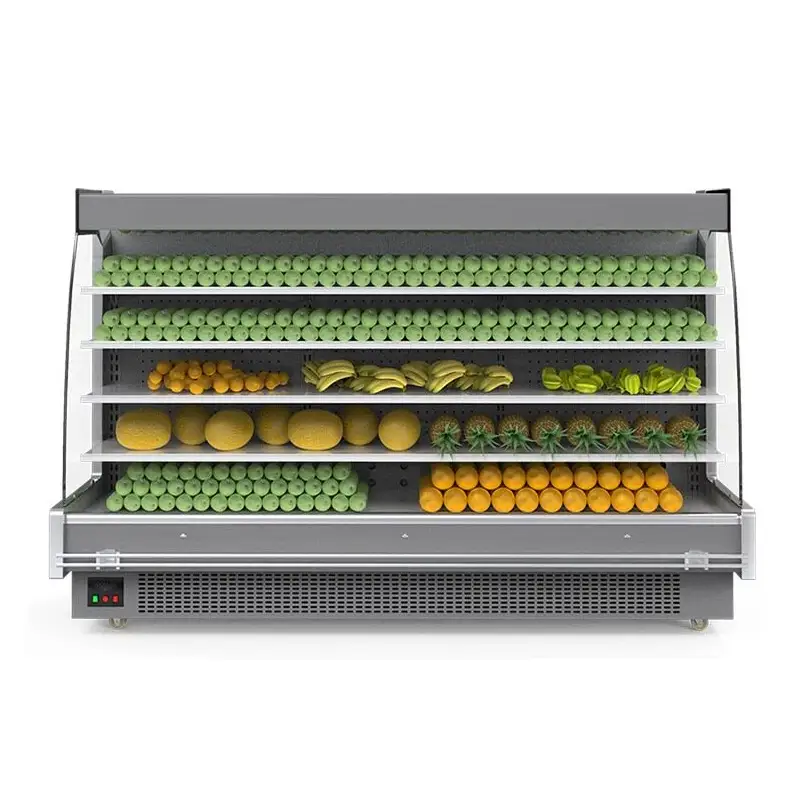

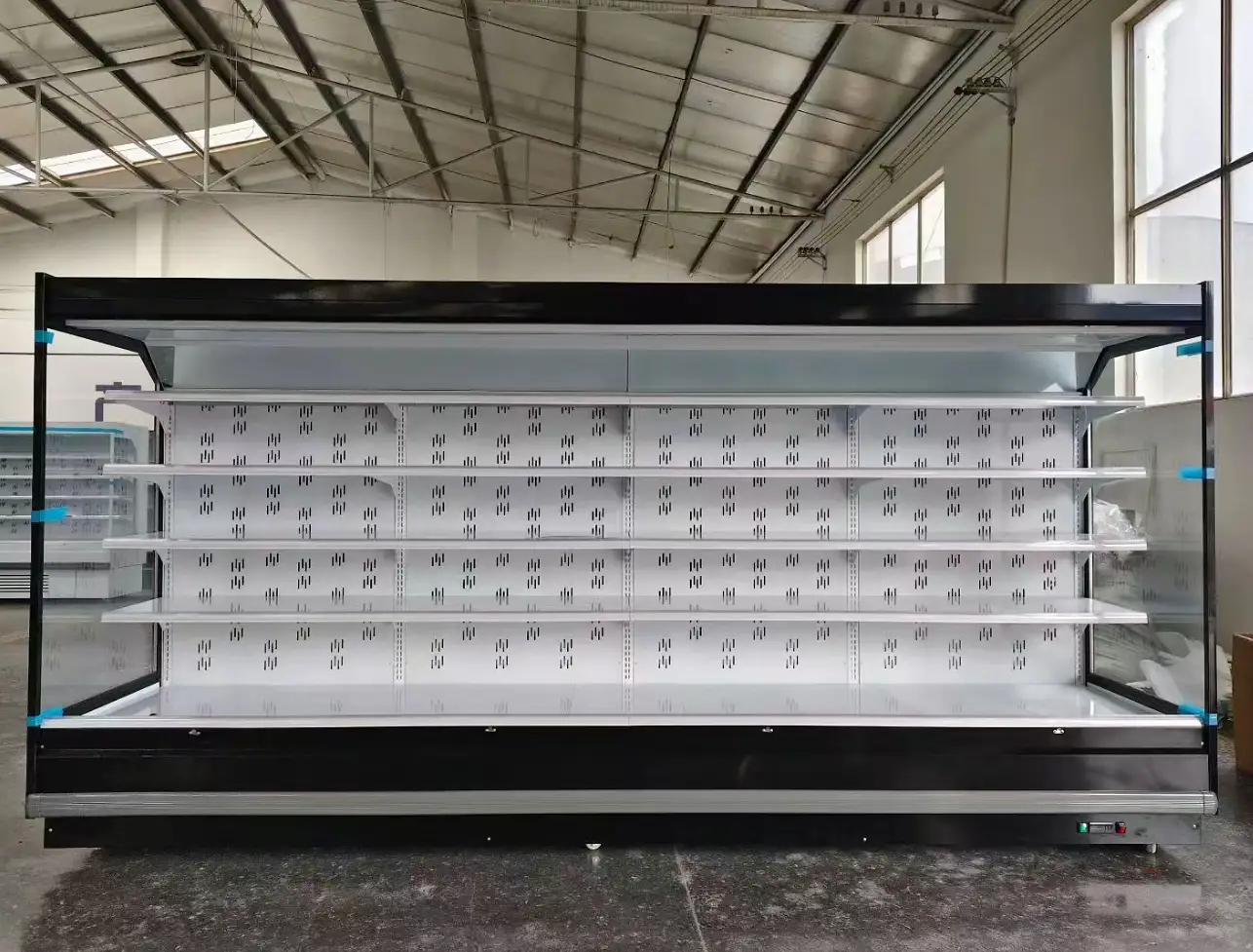

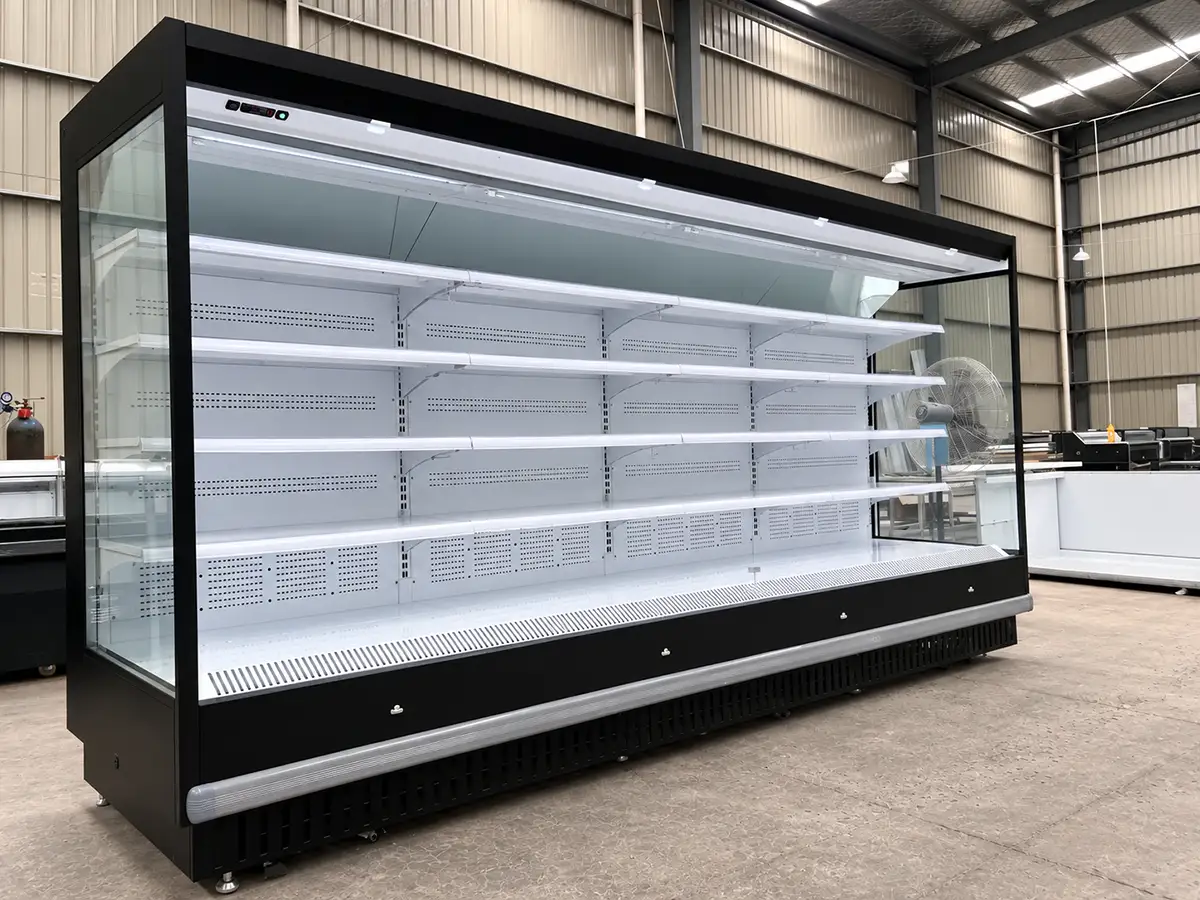

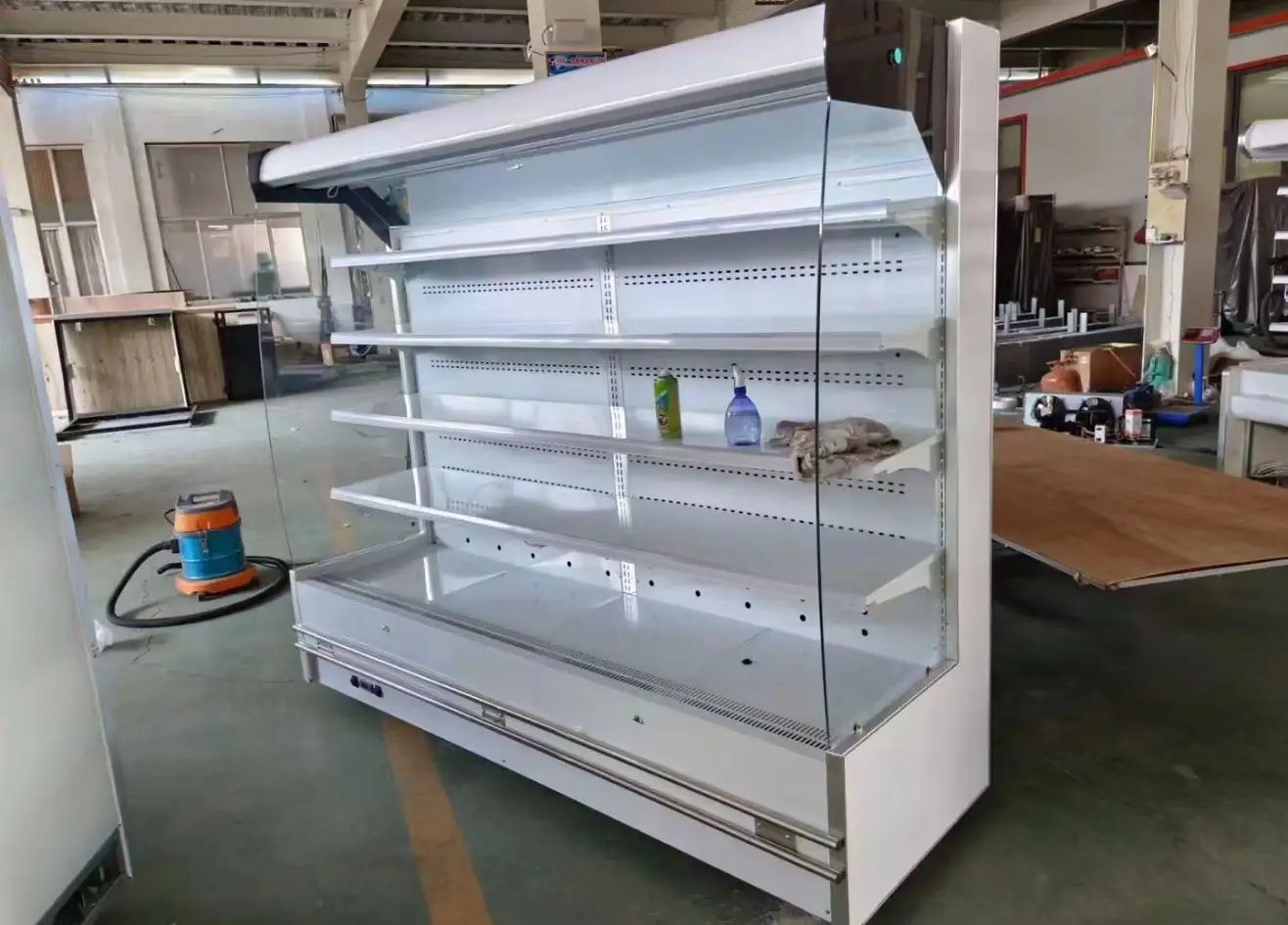

commercial multideck open chiller / supermarket refrigerated display case
commercial multideck open chiller / supermarket refrigerated display case
commercial multideck open chiller / supermarket refrigerated display case
commercial multideck open chiller / supermarket refrigerated display case

Technical Specifications

ModelSize(L×W×H)TemperaturePower(W)Compressor locationLoading (40HQ)(pcs)
PUR‑FM‑12‑XJ1200*1000*20002‑8(℃)1000WBottom28
PUR‑FM‑15‑XJ1500*1000*20002‑8(℃)1000WBottom24
PUR‑FM‑18‑XJ1800*1000*20002‑8(℃)1000WBottom20
PUR‑FM‑20‑XJ2000*1000*20002‑8(℃)1000WBottom18
PUR‑FM‑25‑XJ2500*1000*20002‑8(℃)2000WBottom14
PUR‑FM‑30‑XJ3000*1000*20002‑8(℃)2300WBottom10
PUR‑FM‑35‑XJ3500*1000*20002‑8(℃)2500WBottom8
PUR‑FM‑40‑XJ4000*1000*20002‑8(℃)3000WBottom6

Key Features & Benefits

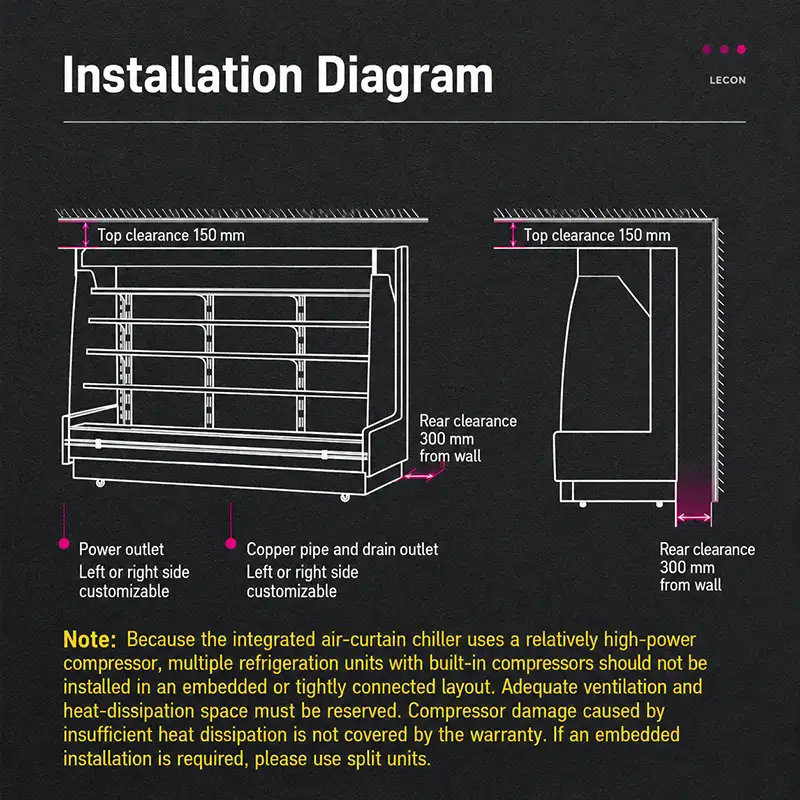

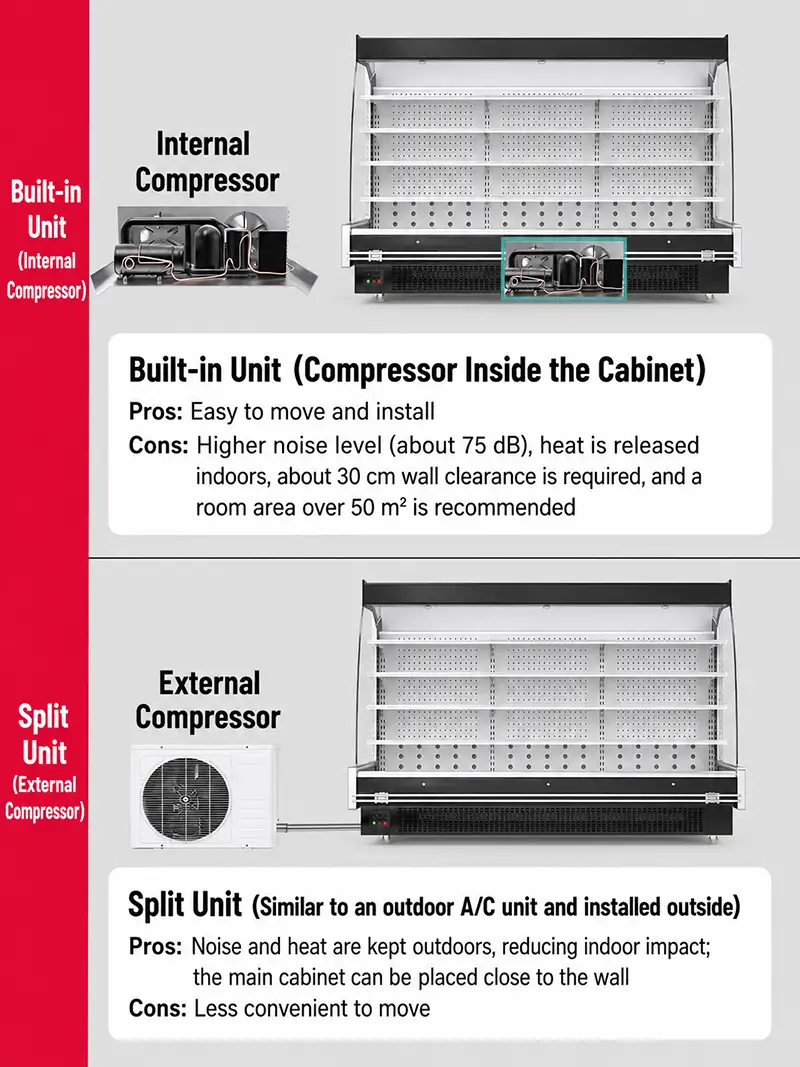

Choose According to Your Specific Location

Two optional configurations for your site: All‑in‑One Unit and Remote Unit.
All‑in‑One Unit: Compressor built‑in cabinet. Easy installation & relocation; yet generates noise, heat and drainage indoors, needs 30cm wall clearance.
Remote Unit: Outdoor condensing unit like AC outside unit. Noise, heat and drainage are outside room; but requires outdoor installation environment and hard to move.

commercial multideck open chiller / supermarket refrigerated display case

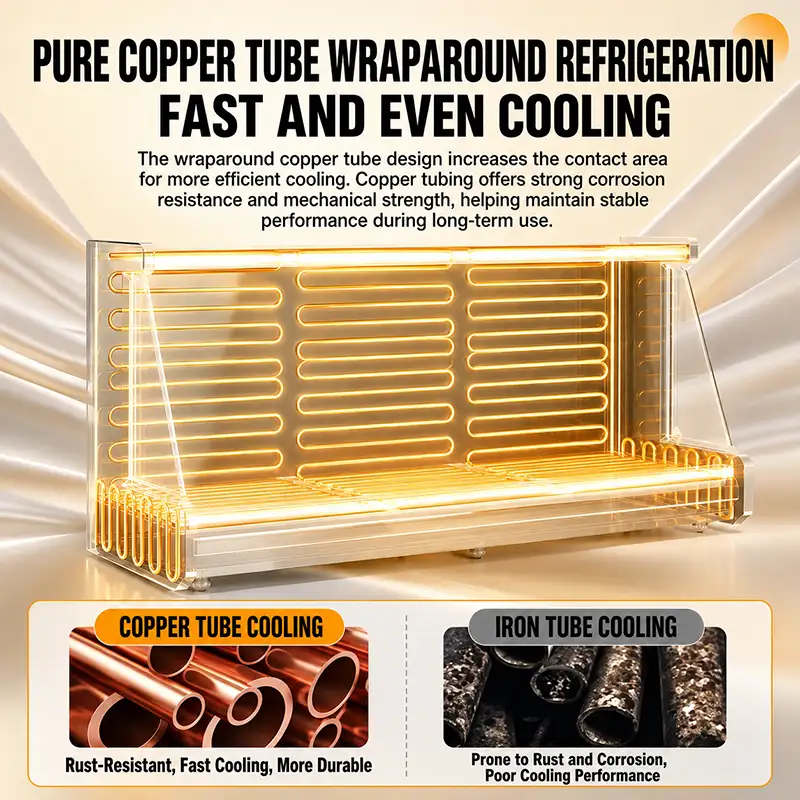

Pure Copper Tube Wraparound Refrigeration, Fast And Even Cooling

Wraparound pure copper tube design enlarges heat‑exchange contact area for highly efficient and uniform cooling. Copper tubing features outstanding corrosion resistance and mechanical strength, ensuring stable long‑term operation, anti‑rust performance and longer service life compared with iron tubes.

commercial multideck display chiller for supermarket fresh food merchandising

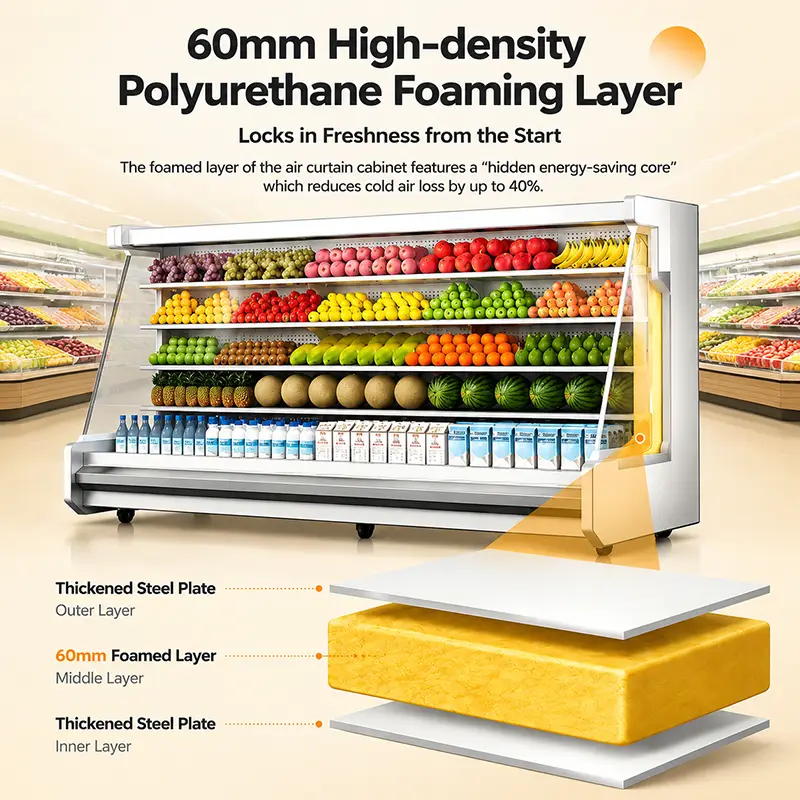

60mm High‑density Polyurethane Foaming Layer

60mm thick polyurethane foam layer acts as hidden energy‑saving core, reduces cold‑air loss by up to 40%. Excellent heat‑insulation keeps stable cabinet temperature, locks in food freshness and cuts energy consumption.

commercial multideck display chiller for supermarket fresh food merchandising

Circulating Air Cooling

Rapid 360° air circulation delivers fast and even cooling throughout the cabinet, maintains a consistent temperature on every shelf, forms effective air curtain barrier to block external heat, dust, insects and odors, minimizes frost build‑up for reliable, energy‑efficient performance.

commercial multideck open chiller / supermarket refrigerated display case

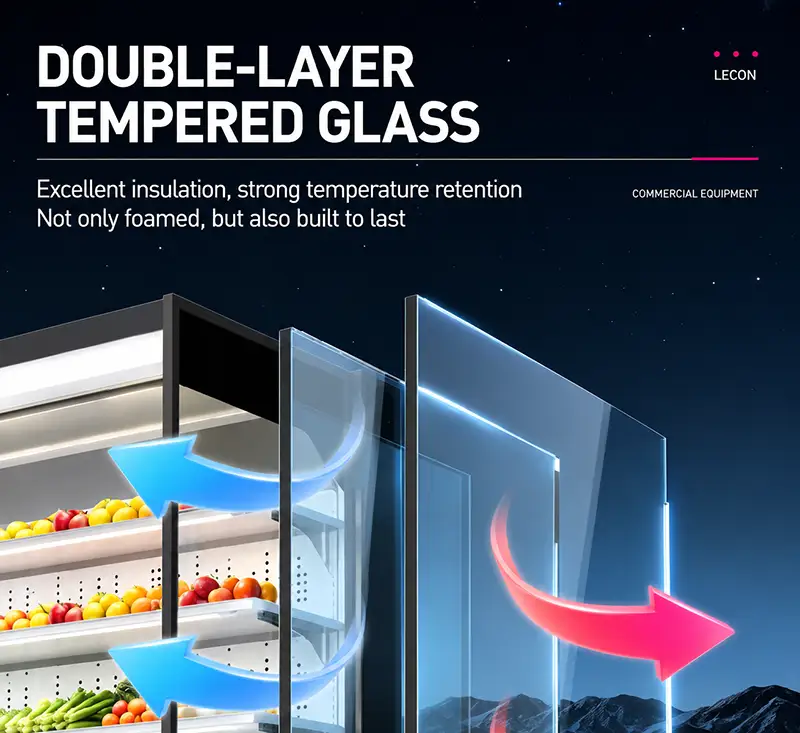

Double‑Layer Thickened High‑Transparency Glass

Double‑layer thickened high‑transparency glass locks cold air inside the cabinet and blocks external heat transfer. It delivers great thermal insulation, reduces condensation, ensures sturdy durability, while providing clear merchandise viewing effect.

commercial multideck open chiller / supermarket refrigerated display case

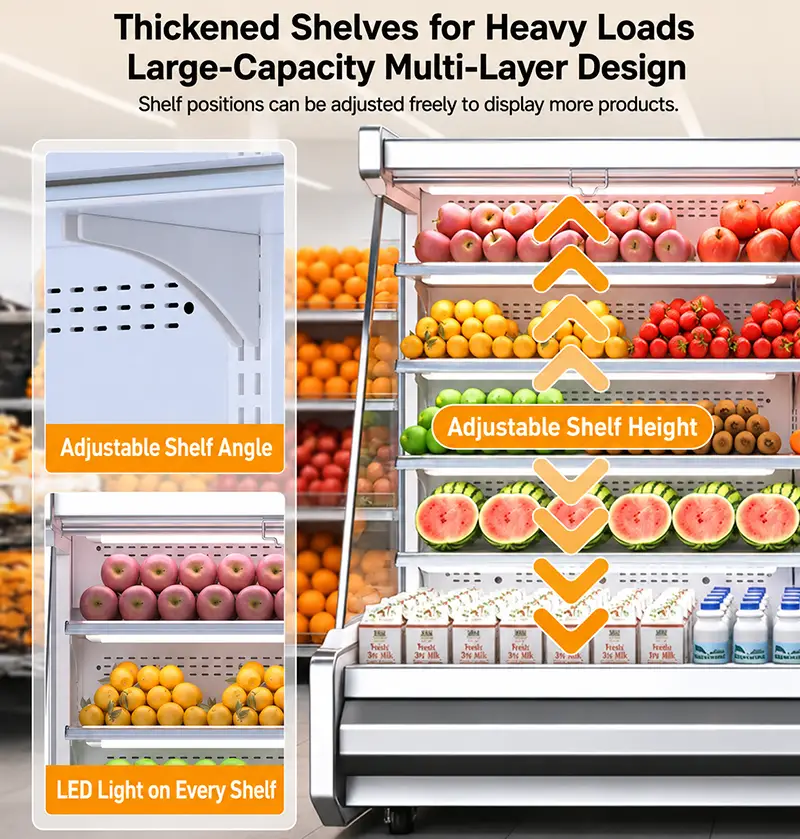

Thickened Shelves for Heavy Loads, Large‑Capacity Multi‑Layer Design

Heavy‑duty thickened shelves support large loading capacity. Both shelf height and angle can be adjusted freely for flexible display. Each shelf is equipped with LED light, maximizing storage space and showcasing more products attractively.

commercial multideck display chiller for supermarket fresh food merchandising

Hydrophilic Aluminum Foil Evaporator

Enlarged heat‑exchange area for faster cooling. Effectively reduces noise from condensed‑water‑blocked airflow

commercial multideck open chiller / supermarket refrigerated display case

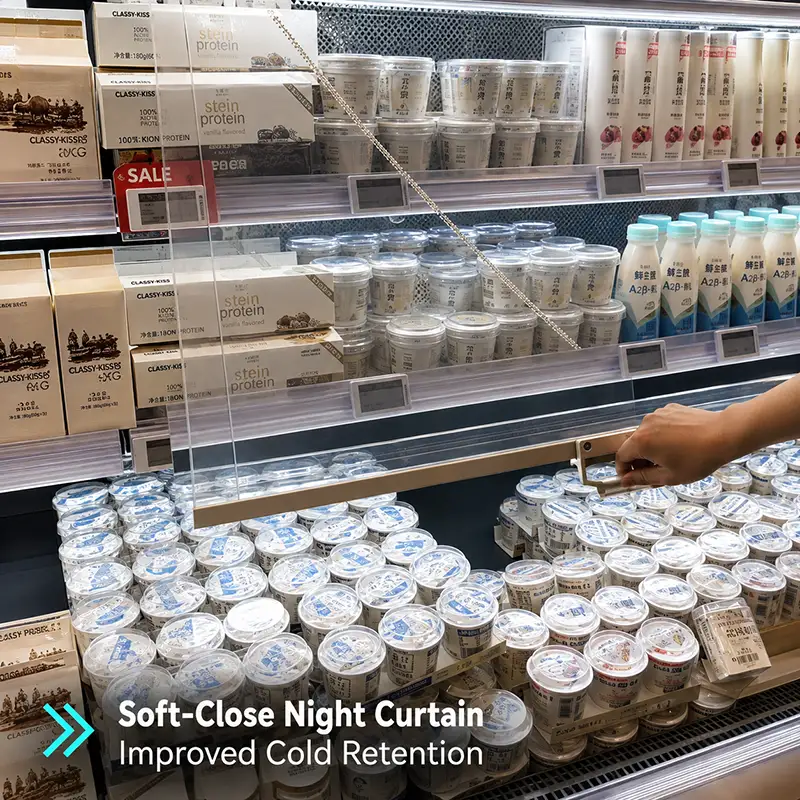

Food‑Grade PE Night Curtain

Adopts food‑grade PE material with light‑transmitting mesh structure. Pull down the curtain at night to block insects, cut energy consumption and retain food freshness; lift it up in daytime for clear product display.

commercial multideck display chiller for supermarket fresh food merchandising

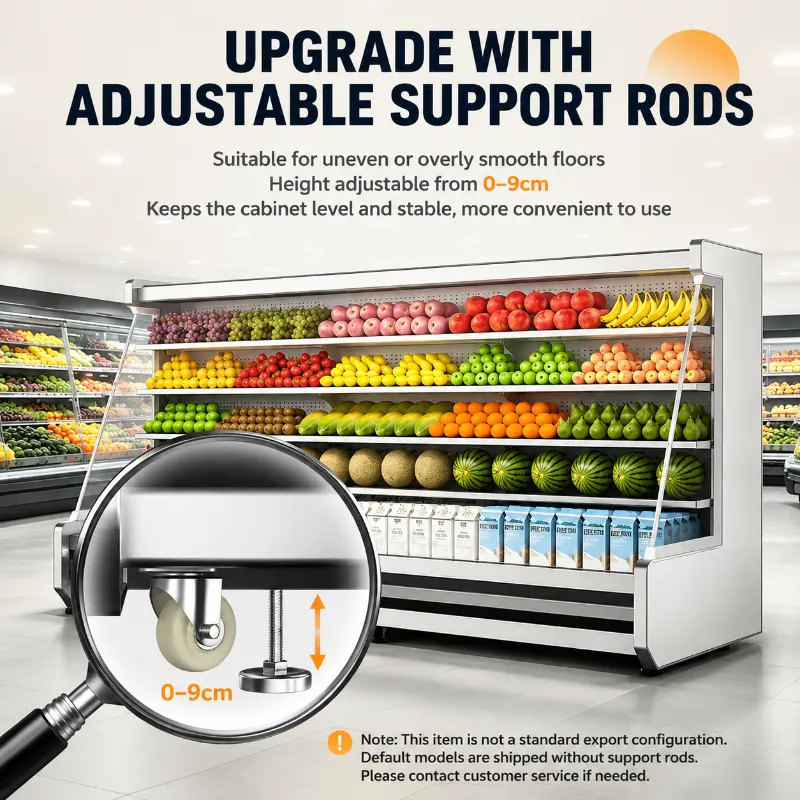

Upgraded Height‑Adjustable Support Rods

Ideal for uneven or extra‑smooth floors. Adjustable height ranges from 0‑9 cm, keeping the cabinet level and stable for convenient operation. Note: Support rods are non‑standard export configuration; default units ship without them. Contact customer service if required.

commercial multideck display chiller for supermarket fresh food merchandising

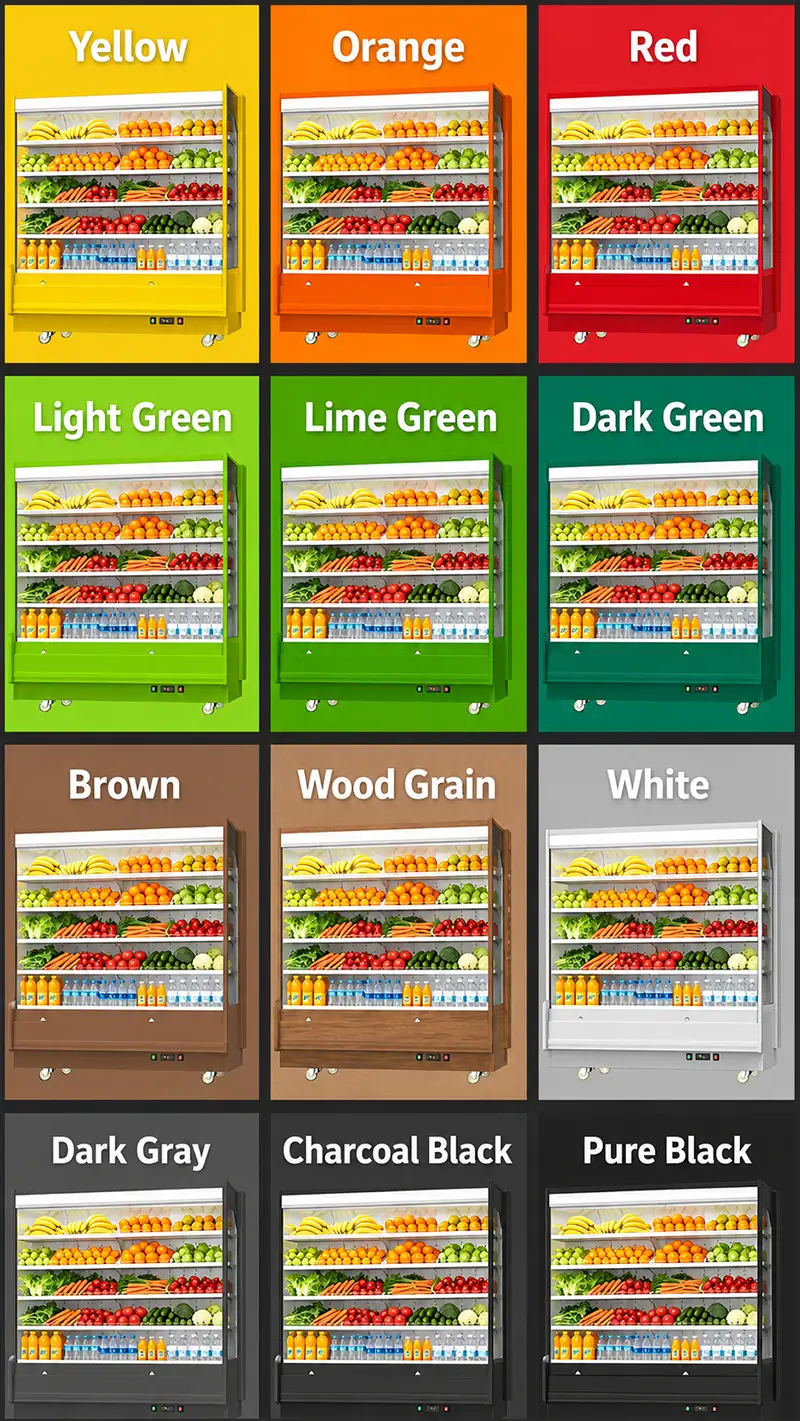

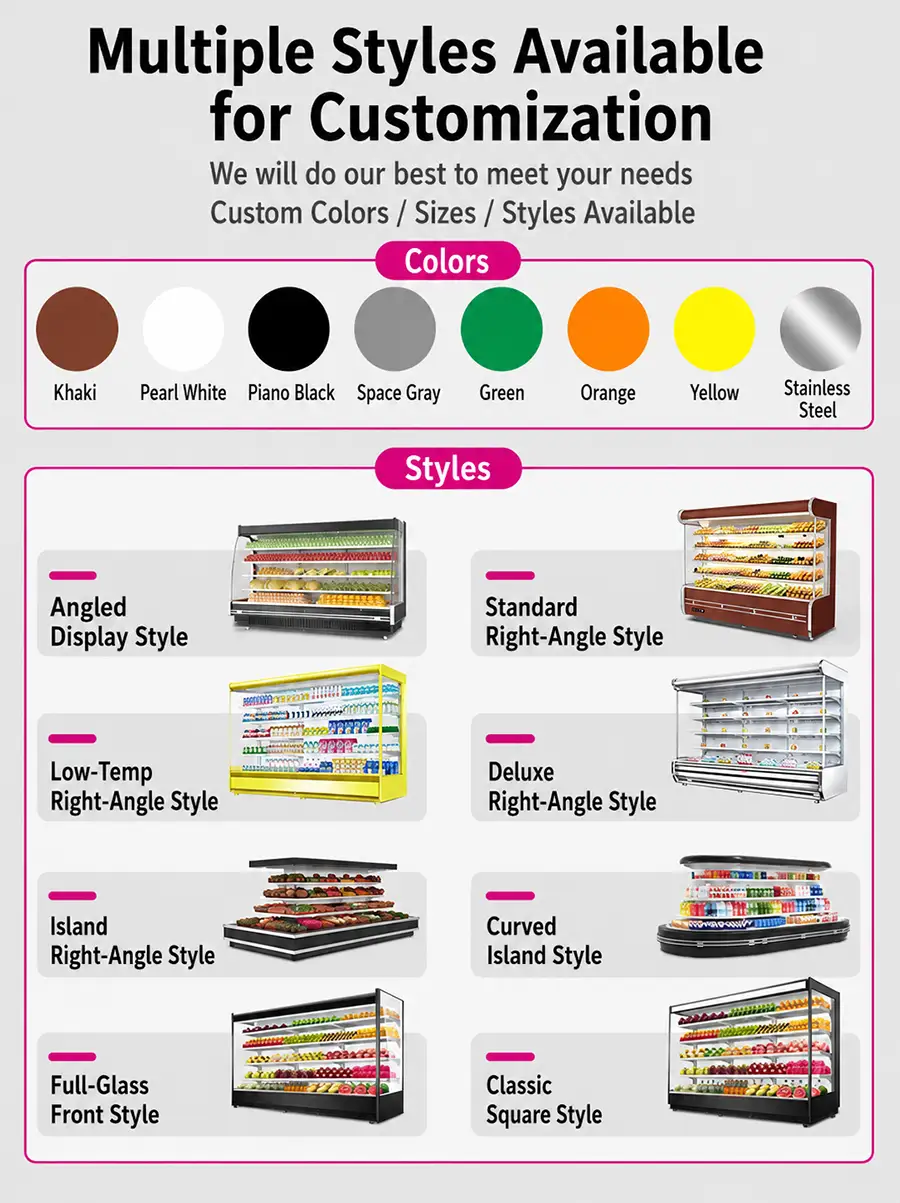

Create your own style

Customize your upright glass‑door refrigerator according to your brand and business requirements. We provide comprehensive OEM/ODM customization services for bulk orders.

Application Scenarios

commercial multideck display chiller for supermarket fresh food merchandising

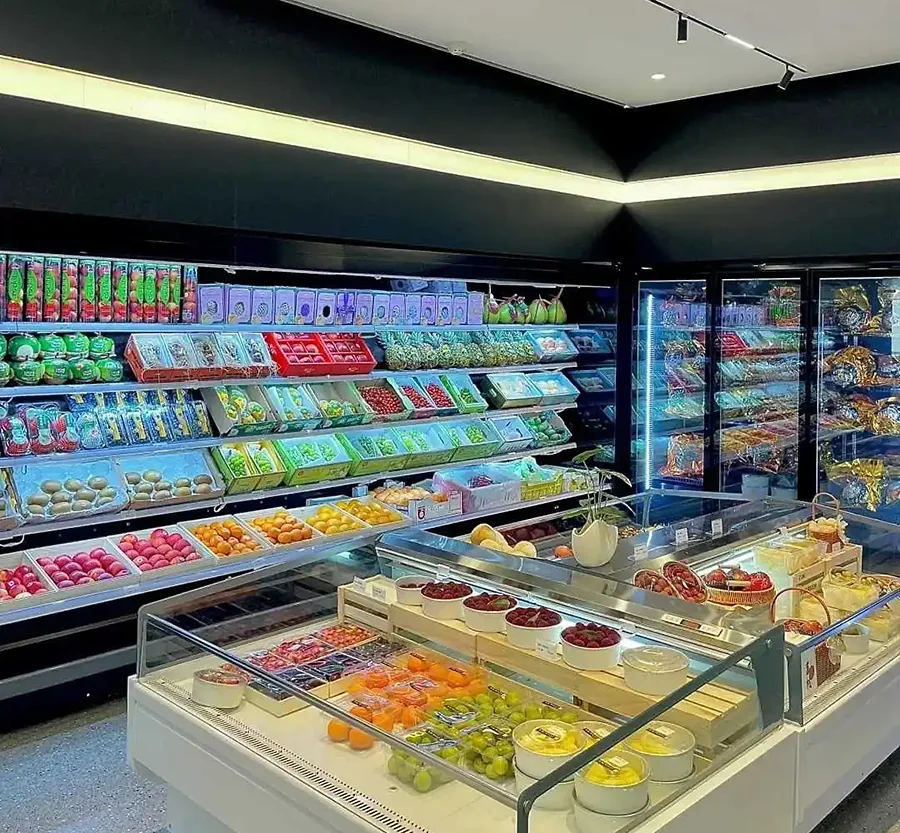

Fruit & Fresh Food Retail Stores

Perfect for fruit shops, fresh‑food supermarkets and delicatessen stores. It provides reliable low‑temperature preservation for fruits, vegetables, prepared food and fresh produce, while delivering attractive full‑view product display to boost in‑store sales.

commercial multideck display chiller for supermarket fresh food merchandising

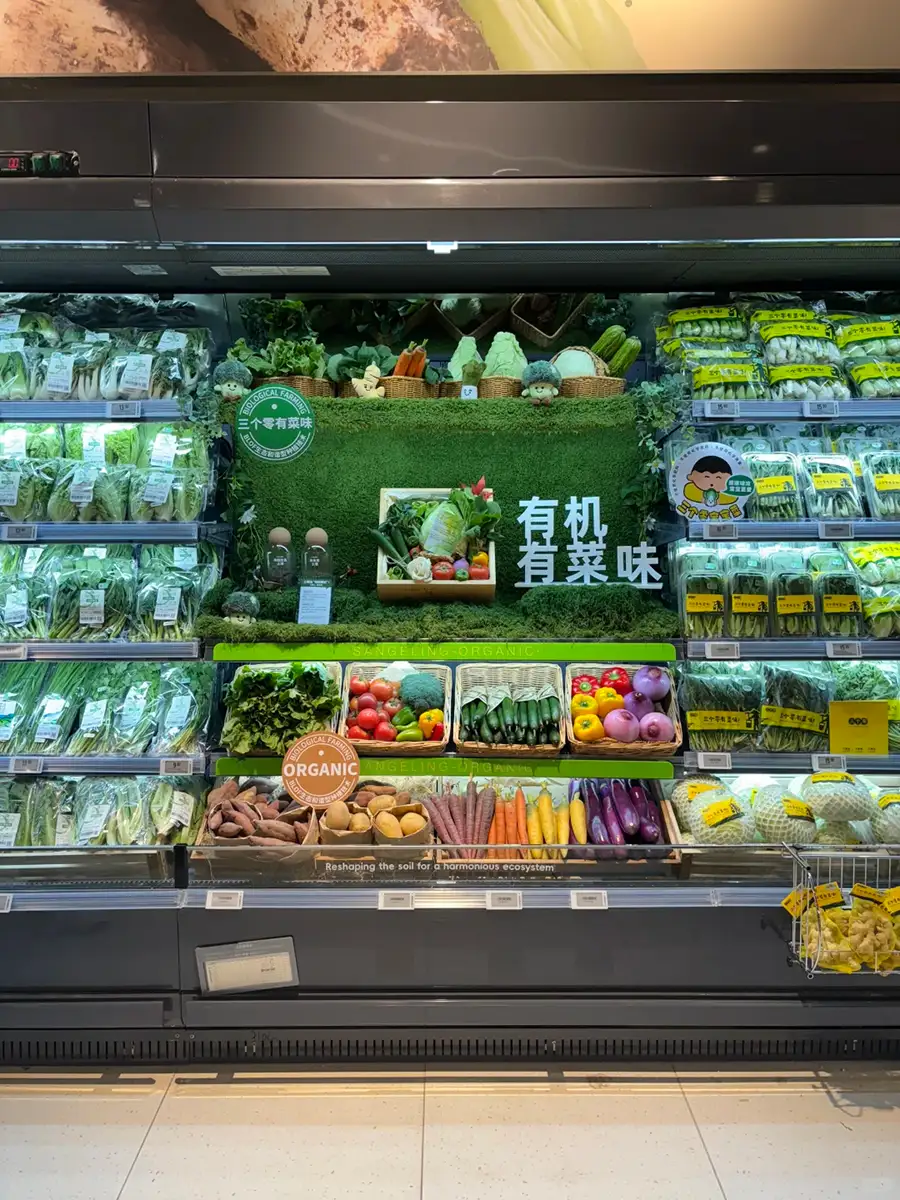

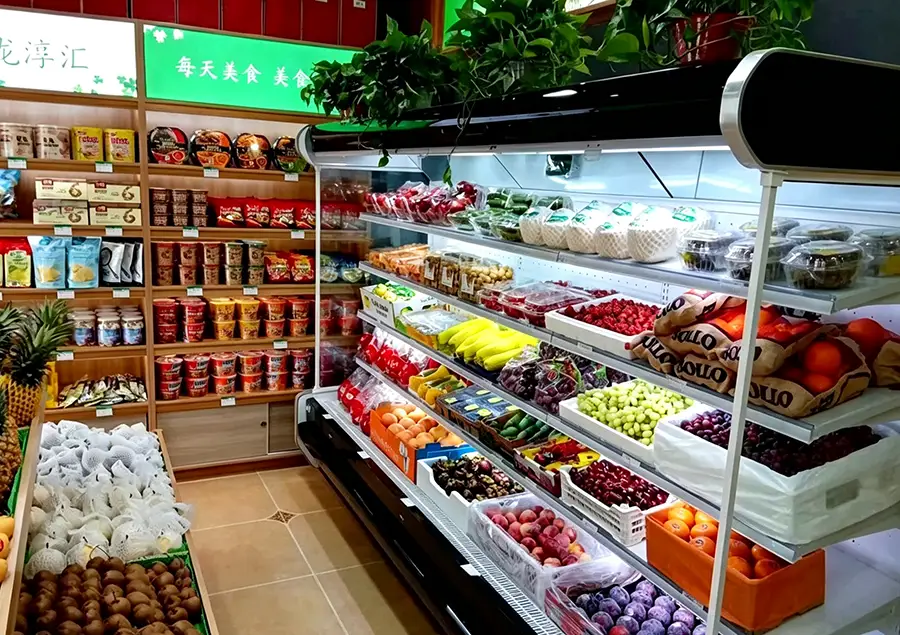

Fresh Food Supermarkets

Ideal for supermarkets and grocery stores. This display chiller keeps vegetables, organic produce and greens at optimal temperature, retains moisture and freshness, and creates appealing shelf presentation to drive retail sales.

commercial multideck display chiller for supermarket fresh food merchandising

Community Grocery & Fruit Shops

Perfect for neighborhood fruit stores and community grocery outlets. It delivers reliable refrigeration for various fresh fruits and pre‑packaged food, maintains good product freshness, and provides clear display to attract local customers.

commercial multideck display chiller for supermarket fresh food merchandising

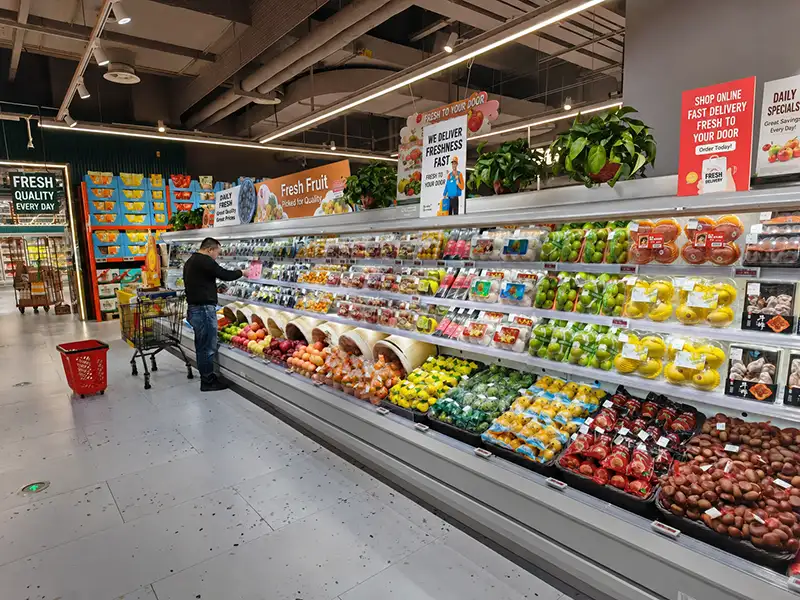

Supermarkets & Grocery Stores

Designed for large‑scale supermarkets and grocery retail chains. It maintains consistent cooling for fruits and fresh produce, retains product freshness, and delivers panoramic display to enhance customer shopping experience and drive sales.

Factory situation

purui commercial refrigeration factory workshop

Company Exhibition

purui international trade show

Shipping Area

purui commercial refrigeration export packaging2

FAQ

What certifications do you have?

We hold multiple certifications for products supplied to more than 70 countries and regions, including CE, ETL, cETL, RoHS, PSE, and SAA.

Do you test all products before shipment?

Yes. 100% of our products are inspected and tested before shipment to ensure proper operation and product quality.

Can your refrigeration equipment be customized for different applications?

Yes. Depending on the product and project requirements, we can customize dimensions, temperature ranges, internal configurations, door options, electrical specifications, branding, and other details.

Do you support OEM production and bulk orders for commercial kitchen projects?

Yes. We support OEM production and bulk purchasing for distributors, commercial kitchen projects, restaurants, hotels, supermarkets, and other foodservice businesses.

Please provide the required models, quantities, and project specifications so we can discuss the most suitable solution.

Can you provide a complete equipment solution?

Yes. Please provide your floor plan, menu, site dimensions, or equipment list, and we can recommend a suitable equipment combination and layout based on your project requirements.

Can I visit your factory?

Yes. Factory visits are welcome and should be arranged in advance.

We can also provide real production photos, equipment testing videos, and remote video factory inspections if an on-site visit is not convenient.

How can I get a product catalog and quotation?

Please provide the product type, required quantity, equipment dimensions, voltage and frequency, destination country, and any customization requirements.

Based on this information, we will recommend suitable models and prepare a quotation.

What is your MOQ?

The minimum order quantity depends on the product model and customization requirements.

For some standard models, small trial orders are acceptable.

What shipping methods do you provide?

Depending on the destination and delivery requirements, we can arrange shipment by sea, air, or land transportation.

How are the products packed?

Products are packed in export-standard cartons. Depending on the product and shipping requirements, additional protection such as wooden frames, wooden cases, and protective materials can be provided.

Can you supply spare parts?

Yes. We can supply common spare parts and replacement components for equipment maintenance and repair.

Do you provide installation guidance?

Yes. We can provide operation manuals, drawings, installation videos, wiring information, and remote technical support.

What should I do if the goods are damaged during transportation?

Please contact us as soon as possible and provide photos, videos, and relevant shipping documents.

Our team will review the situation and coordinate an appropriate solution as quickly as possible.
