Commercial Open Air Multideck Display Chiller for Supermarkets & Convenience Stores

Model: SL‑SC-FMN
  • Intelligent 360° circulating air‑cooling for long‑term freshness
  • Copper tube evaporator: heat & moisture absorption, corrosion‑proof, no internal leakage, strong cooling performance, compressor protection
  • Thickened reinforced adjustable shelves, adjustable height & tilt for diverse foods
  • 60mm PU foam for superior cold retention
  • Double‑layer high‑transparency glass, inner cold‑lock & outer heat insulation
  • Hidden night curtain: dust & insect resistance, easy storage
  • T8 dedicated LED light to brighten fruit & vegetable appearance
  • Accurate digital temperature control, 1℃ adjustment precision
  • Custom spray humidification system to prolong produce shelf‑life
  • Lockable universal casters, secure placement against shifting
Get a Quick Quote Whatsapp

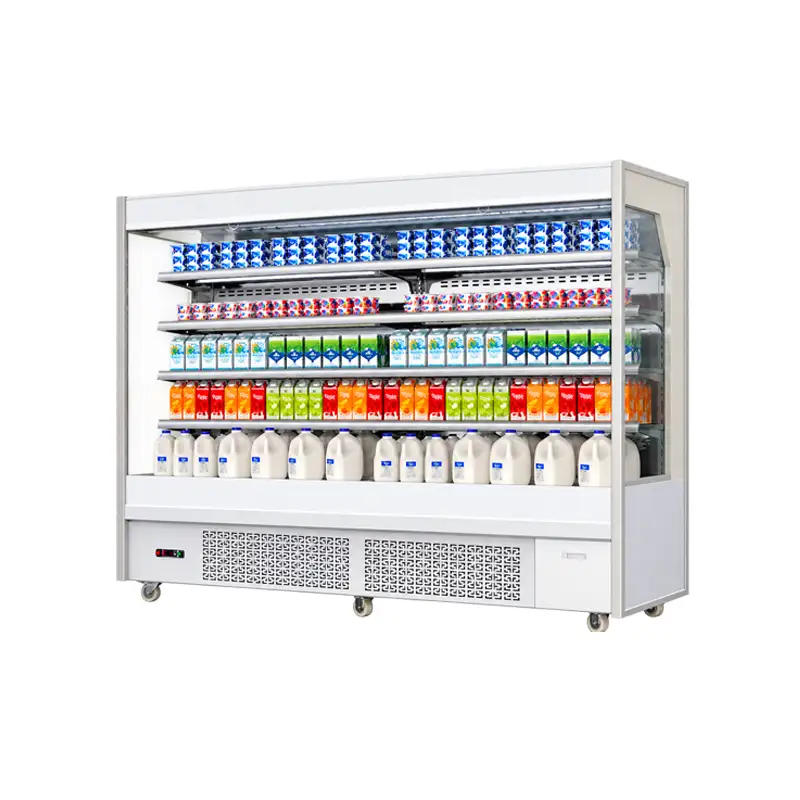

Product Overview

PURUI Commercial Multideck Open Chiller is designed for supermarkets, convenience stores, grocery stores, minimarts and fresh food retail areas where high product visibility and easy customer access are essential. Its open-front design and multiple adjustable shelves provide flexible refrigerated display space for bottled and canned beverages, milk, yogurt, dairy products, packaged foods, sandwiches, desserts, fruits, vegetables and other chilled products. The forced-air cooling system helps maintain even temperature distribution throughout the cabinet, while bright LED lighting improves product presentation and visibility. With a large open display area, durable commercial structure and flexible configuration options, this multideck chiller is suitable for beverage sections, dairy sections, fresh food aisles and promotional display zones in different retail environments. PURUI offers customizable lengths, colors, shelf layouts, voltage options and refrigeration specifications, with OEM/ODM support available for supermarket equipment distributors, contractors, chain stores and commercial refrigeration projects.

commercial open air multideck display chiller for supermarkets & convenience stores



commercial open air multideck display chiller for supermarkets & convenience stores

Technical Specifications

ModelSize(L×W×H)TemperaturePower(W)Compressor locationLoading (40HQ)(pcs)
SL‑SC‑FM‑12‑XN1200*800*20002‑6℃1000WBottom28
SL‑SC‑FM‑15‑XN1500*800*20002‑6℃1000WBottom24
SL‑SC‑FM‑18‑XN1800*800*20002‑6℃1000WBottom20
SL‑SC‑FM‑20‑XN2000*800*20002‑6℃1000WBottom18
SL‑SC‑FM‑25‑XN2500*800*20002‑6℃2000WBottom14
SL‑SC‑FM‑30‑XN3000*800*20002‑6℃2300WBottom10
SL‑SC‑FM‑35‑XN3500*800*20002‑6℃2500WBottom8
SL‑SC‑FM‑40‑XN4000*800*20002‑6℃3000WBottom6

Key Features & Benefits

Choose According to Your Specific Location

Two optional configurations for your site: All‑in‑One Unit and Remote Unit.
All‑in‑One Unit: Compressor built‑in cabinet. Easy installation & relocation; yet generates noise, heat and drainage indoors, needs 30cm wall clearance.
Remote Unit: Outdoor condensing unit like AC outside unit. Noise, heat and drainage are outside room; but requires outdoor installation environment and hard to move.

commercial multideck open chiller / supermarket refrigerated display case

Pure Copper Tube Wraparound Refrigeration, Fast And Even Cooling

Wraparound pure copper tube expands heat‑exchange area for efficient, even cooling. It is corrosion‑resistant, rust‑proof and leak‑free, absorbing heat and moisture effectively. Longer service life and well protects the compressor for stable long‑time operation.

commercial open air multideck display chiller for supermarkets & convenience stores

60mm High‑density Polyurethane Foaming Layer

60mm thick polyurethane foam layer acts as hidden energy‑saving core, reduces cold‑air loss by up to 40%. Excellent heat‑insulation keeps stable cabinet temperature, locks in food freshness and cuts energy consumption.

commercial multideck display chiller for supermarket fresh food merchandising

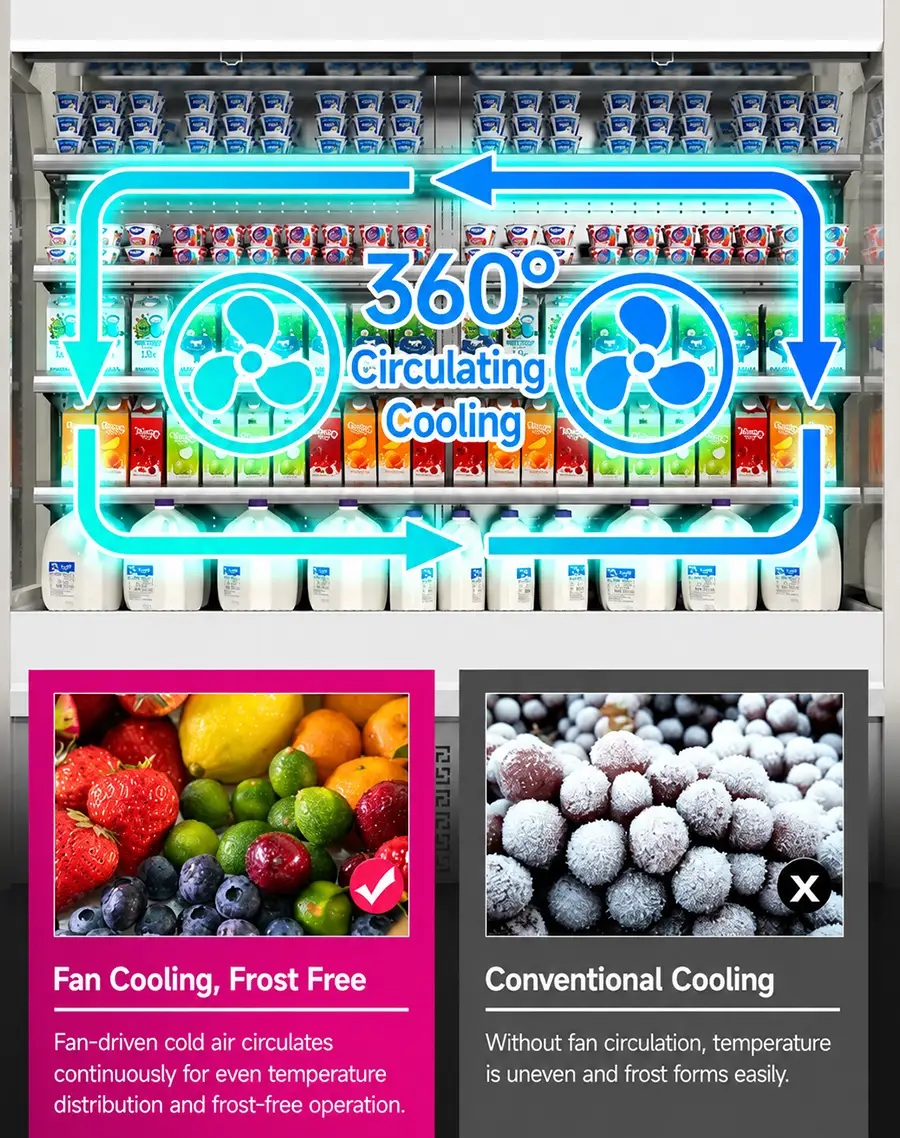

Circulating Air Cooling

Rapid 360° air circulation delivers fast and even cooling throughout the cabinet, maintains a consistent temperature on every shelf, forms effective air curtain barrier to block external heat, dust, insects and odors, minimizes frost build‑up for reliable, energy‑efficient performance.

commercial open air multideck display chiller for supermarkets & convenience stores

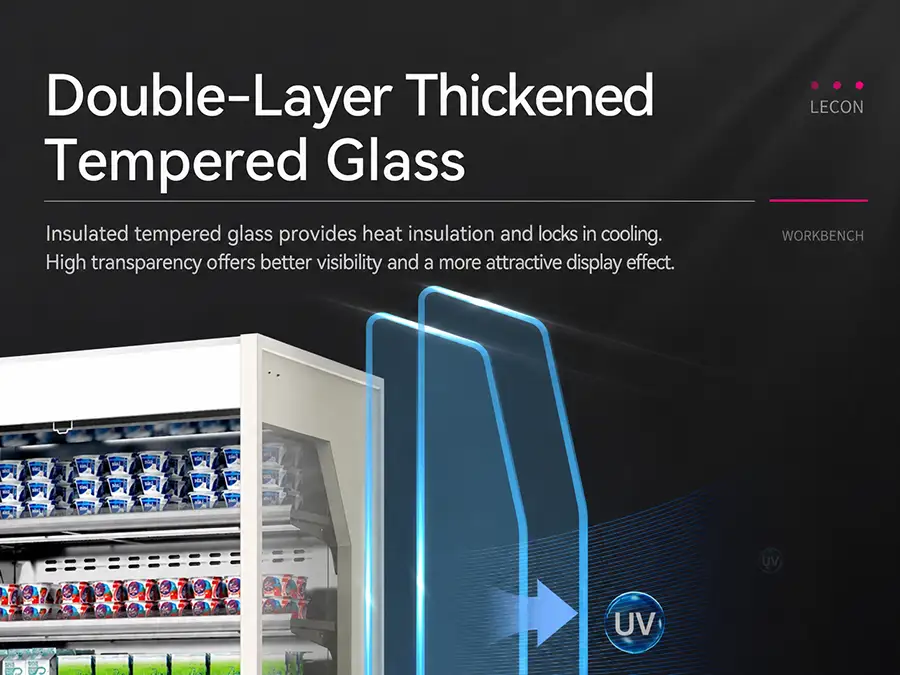

Double‑Layer Thickened High‑Transparency Glass

Double‑layer thickened high‑transparency glass locks cold air inside the cabinet and blocks external heat transfer. It delivers great thermal insulation, reduces condensation, ensures sturdy durability, while providing clear merchandise viewing effect.

commercial open air multideck display chiller for supermarkets & convenience stores

Thickened Shelves for Heavy Loads, Large‑Capacity Multi‑Layer Design

Heavy‑duty thickened shelves support large loading capacity. Both shelf height and angle can be adjusted freely for flexible display. Each shelf is equipped with LED light, maximizing storage space and showcasing more products attractively.

commercial multideck display chiller for supermarket fresh food merchandising

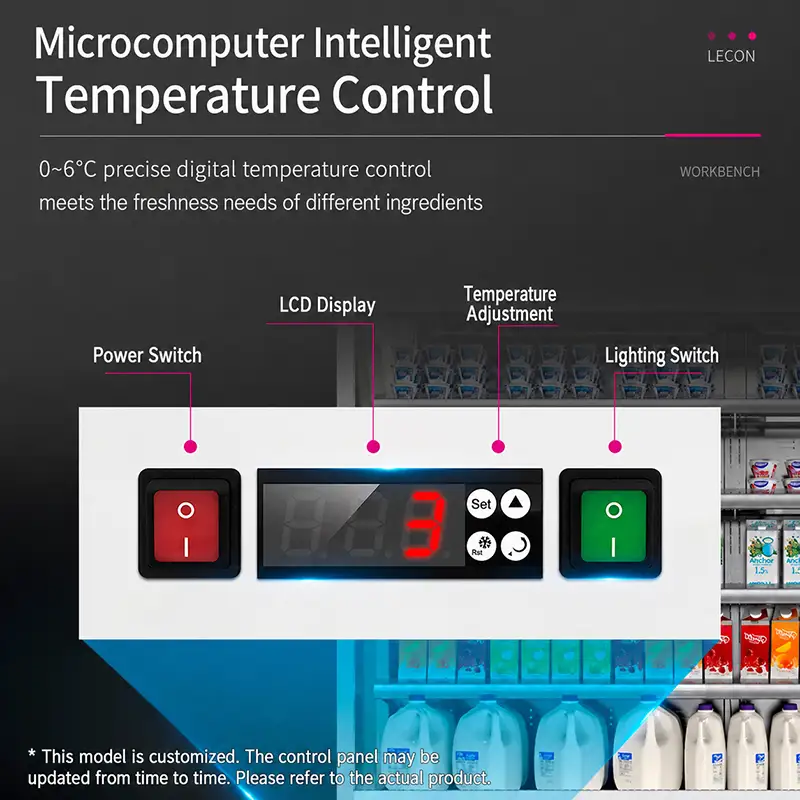

Microcomputer Intelligent Temperature Control

0‑6℃ precise digital temperature control with LCD display, satisfies freshness‑keeping requirements for various food ingredients.

commercial open air multideck display chiller for supermarkets & convenience stores

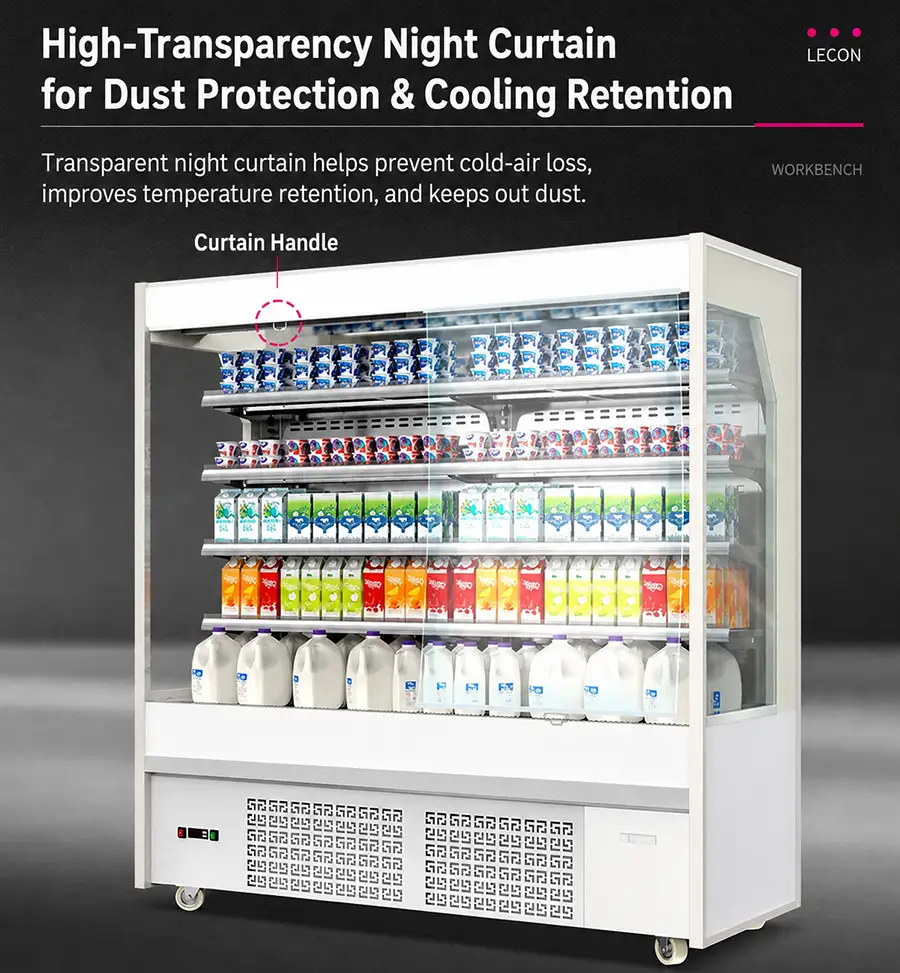

Food‑Grade PE Night Curtain

Adopts food‑grade PE material with light‑transmitting mesh structure. Pull down the curtain at night to block insects, cut energy consumption and retain food freshness; lift it up in daytime for clear product display.

commercial open air multideck display chiller for supermarkets & convenience stores

Upgraded Height‑Adjustable Support Rods

Ideal for uneven or extra‑smooth floors. Adjustable height ranges from 0‑9 cm, keeping the cabinet level and stable for convenient operation. Note: Support rods are non‑standard export configuration; default units ship without them. Contact customer service if required.

commercial multideck display chiller for supermarket fresh food merchandising

Create your own style

Customize your upright glass‑door refrigerator according to your brand and business requirements. We provide comprehensive OEM/ODM customization services for bulk orders.

Application Scenarios

commercial multideck display chiller for supermarket fresh food merchandising

Fruit & Fresh Food Retail Stores

Perfect for fruit shops, fresh‑food supermarkets and delicatessen stores. It provides reliable low‑temperature preservation for fruits, vegetables, prepared food and fresh produce, while delivering attractive full‑view product display to boost in‑store sales.

commercial multideck display chiller for supermarket fresh food merchandising

Fresh Food Supermarkets

Ideal for supermarkets and grocery stores. This display chiller keeps vegetables, organic produce and greens at optimal temperature, retains moisture and freshness, and creates appealing shelf presentation to drive retail sales.

commercial multideck display chiller for supermarket fresh food merchandising

Community Grocery & Fruit Shops

Perfect for neighborhood fruit stores and community grocery outlets. It delivers reliable refrigeration for various fresh fruits and pre‑packaged food, maintains good product freshness, and provides clear display to attract local customers.

commercial multideck display chiller for supermarket fresh food merchandising

Supermarkets & Grocery Stores

Designed for large‑scale supermarkets and grocery retail chains. It maintains consistent cooling for fruits and fresh produce, retains product freshness, and delivers panoramic display to enhance customer shopping experience and drive sales.

Factory situation

purui commercial refrigeration factory workshop

Company Exhibition

purui international trade show

Shipping Area

purui commercial refrigeration export packaging2

FAQ

What certifications do you have?

We hold multiple certifications for products supplied to more than 70 countries and regions, including CE, ETL, cETL, RoHS, PSE, and SAA.

Do you test all products before shipment?

Yes. 100% of our products are inspected and tested before shipment to ensure proper operation and product quality.

Can your refrigeration equipment be customized for different applications?

Yes. Depending on the product and project requirements, we can customize dimensions, temperature ranges, internal configurations, door options, electrical specifications, branding, and other details.

Do you support OEM production and bulk orders for commercial kitchen projects?

Yes. We support OEM production and bulk purchasing for distributors, commercial kitchen projects, restaurants, hotels, supermarkets, and other foodservice businesses.

Please provide the required models, quantities, and project specifications so we can discuss the most suitable solution.

Can you provide a complete equipment solution?

Yes. Please provide your floor plan, menu, site dimensions, or equipment list, and we can recommend a suitable equipment combination and layout based on your project requirements.

Can I visit your factory?

Yes. Factory visits are welcome and should be arranged in advance.

We can also provide real production photos, equipment testing videos, and remote video factory inspections if an on-site visit is not convenient.

How can I get a product catalog and quotation?

Please provide the product type, required quantity, equipment dimensions, voltage and frequency, destination country, and any customization requirements.

Based on this information, we will recommend suitable models and prepare a quotation.

What is your MOQ?

The minimum order quantity depends on the product model and customization requirements.

For some standard models, small trial orders are acceptable.

What shipping methods do you provide?

Depending on the destination and delivery requirements, we can arrange shipment by sea, air, or land transportation.

How are the products packed?

Products are packed in export-standard cartons. Depending on the product and shipping requirements, additional protection such as wooden frames, wooden cases, and protective materials can be provided.

Can you supply spare parts?

Yes. We can supply common spare parts and replacement components for equipment maintenance and repair.

Do you provide installation guidance?

Yes. We can provide operation manuals, drawings, installation videos, wiring information, and remote technical support.

What should I do if the goods are damaged during transportation?

Please contact us as soon as possible and provide photos, videos, and relevant shipping documents.

Our team will review the situation and coordinate an appropriate solution as quickly as possible.
